A1200 Component broken
« on: December 11, 2010, 07:52:08 PM »
Hi:
I had an accident and a piece got broken in my A1200. It puts F3.00F. Which is it (capacitor, diode, transistor, whatever) and where can I find it?
http://img821.imageshack.us/img821/2765/abcd0013br.jpg

Thanks.
Logged
A1200, Lateral 32GB CF, internal Dvd, ACA 1230/56 with an MKII Fast ATA at 9,5Mb/s, another A1200 BPPC project in progress (more or less), and posting from my own/better C64x in my Tv using Hdmi.


Offline Vlabguy1

  • Hero Member
  • *****
  • Join Date: Aug 2006
  • Posts: 1264
    • Show only replies by Vlabguy1
Re: A1200 Component broken
« Reply #1 on: December 11, 2010, 08:59:34 PM »
Try Digikey.com

Rich
ny




Quote from: Retrofan;598190
Hi:
I had an accident and a piece got broken in my A1200. It puts F3.00F. Which is it (capacitor, diode, transistor, whatever) and where can I find it?
http://img821.imageshack.us/img821/2765/abcd0013br.jpg

Thanks.
Logged


Offline Zac67

  • Hero Member
  • *****
  • Join Date: Nov 2004
  • Posts: 2890
    • Show only replies by Zac67
Re: A1200 Component broken
« Reply #2 on: December 11, 2010, 09:07:39 PM »
Looks like it's Y621 - that's a 3 MHz quartz, should be around .50 €.
Keyboard dead?
Logged


Offline A1260

  • Hero Member
  • *****
  • Join Date: Jul 2007
  • Posts: 693
    • Show only replies by A1260
Re: A1200 Component broken
« Reply #3 on: December 11, 2010, 09:10:40 PM »
OMG!! i hope you can fix it....
Logged


Offline RetrofanTopic starter

  • Hero Member
  • *****
  • Join Date: Mar 2010
  • Posts: 507
    • Show only replies by Retrofan
Re: A1200 Component broken
« Reply #4 on: December 12, 2010, 01:00:10 AM »
Quote from: Zac67;598202
Looks like it's Y621 - that's a 3 MHz quartz, should be around .50 €.
Keyboard dead?

Where are you looking?:confused: I tell the small yellow one. I was trying to install a Fast Ata and as it says you have to press and get the boards together... I think I'm very strong... :). The thing is that when I started the Amiga I didn't get the HD led light, and it doesn't boot, and then I saw that.

It can't cost 50€, can it?
Logged
A1200, Lateral 32GB CF, internal Dvd, ACA 1230/56 with an MKII Fast ATA at 9,5Mb/s, another A1200 BPPC project in progress (more or less), and posting from my own/better C64x in my Tv using Hdmi.


Offline Wasagi

  • Newbie
  • *
  • Join Date: Sep 2010
  • Posts: 34
    • Show only replies by Wasagi
Re: A1200 Component broken
« Reply #5 on: December 12, 2010, 01:06:27 AM »
Its 3Mhz quartz for keyboard.

Machine probably wont boot without it.

Very cheap/easy to replace
Logged


guest7146

  • Guest
Re: A1200 Component broken
« Reply #6 on: December 12, 2010, 01:09:05 AM »
Quote from: Retrofan;598221
It can't cost 50€, can it?

You missed his decimal point.  What he actually said was .50€.
Logged


Offline RetrofanTopic starter

  • Hero Member
  • *****
  • Join Date: Mar 2010
  • Posts: 507
    • Show only replies by Retrofan
Re: A1200 Component broken
« Reply #7 on: December 12, 2010, 02:08:43 AM »
Thanks, yes I was reading it again now. What made me think that was the "OMG!! i hope you can fix it.... "
Yes, it seems it's a ceramic resonator? (from other forum). But I don't find it nowhere. Fitzteve had the same problem and he coudn't find one but from a mb donnor.

I'm searching now a faulty/broken Mb, but if I could find it somewhere would be better.
« Last Edit: December 12, 2010, 02:12:18 AM by Retrofan »
Logged
A1200, Lateral 32GB CF, internal Dvd, ACA 1230/56 with an MKII Fast ATA at 9,5Mb/s, another A1200 BPPC project in progress (more or less), and posting from my own/better C64x in my Tv using Hdmi.


Offline RetrofanTopic starter

  • Hero Member
  • *****
  • Join Date: Mar 2010
  • Posts: 507
    • Show only replies by Retrofan
Re: A1200 Component broken
« Reply #8 on: December 12, 2010, 02:32:50 AM »
Logged
A1200, Lateral 32GB CF, internal Dvd, ACA 1230/56 with an MKII Fast ATA at 9,5Mb/s, another A1200 BPPC project in progress (more or less), and posting from my own/better C64x in my Tv using Hdmi.


Offline mongo

  • Hero Member
  • *****
  • Join Date: Feb 2002
  • Posts: 964
    • Show only replies by mongo
Re: A1200 Component broken
« Reply #9 on: December 12, 2010, 02:33:35 AM »
Logged


Offline RetrofanTopic starter

  • Hero Member
  • *****
  • Join Date: Mar 2010
  • Posts: 507
    • Show only replies by Retrofan
Re: A1200 Component broken
« Reply #10 on: December 12, 2010, 02:43:23 AM »
Quote from: mongo;598227
Digikey has them, but the shipping is going to be expensive.

http://search.digikey.com/scripts/DkSearch/dksus.dll?Detail&name=PX300MN-ND

You can also find them on eBay, but it's not any cheaper.

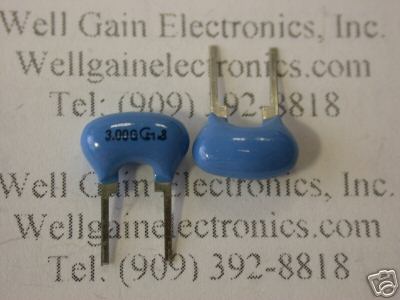

http://cgi.ebay.ca/10x-MURATA-CSA3-00MG-CERAMIC-RESONATOR-3MHZ-NEW-LOT-/7558046512?pt=LH_DefaultDomain_0&hash=item1c27ea330

Thanks a lot, it wasn't easy to search them, but I was faster:)
So the one I've shown is right?
Logged
A1200, Lateral 32GB CF, internal Dvd, ACA 1230/56 with an MKII Fast ATA at 9,5Mb/s, another A1200 BPPC project in progress (more or less), and posting from my own/better C64x in my Tv using Hdmi.


Offline mongo

  • Hero Member
  • *****
  • Join Date: Feb 2002
  • Posts: 964
    • Show only replies by mongo
Re: A1200 Component broken
« Reply #11 on: December 12, 2010, 02:45:05 AM »
Quote from: Retrofan;598228
Thanks a lot, it wasn't easy to search them, but I was faster:)
So the one I've shown it right?


Yes.
Logged


Offline RetrofanTopic starter

  • Hero Member
  • *****
  • Join Date: Mar 2010
  • Posts: 507
    • Show only replies by Retrofan
Re: A1200 Component broken
« Reply #12 on: December 12, 2010, 02:52:15 AM »
Thanks a lot. I've never could find it without your help :rtfm:

Wait... I will ask something else... About the fast ata, I put the ribbon cable upside down and later I saw that. What happens if you put the Hd ribbon cable upside down? Can I've made any other problem?
« Last Edit: December 12, 2010, 03:11:22 AM by Retrofan »
Logged
A1200, Lateral 32GB CF, internal Dvd, ACA 1230/56 with an MKII Fast ATA at 9,5Mb/s, another A1200 BPPC project in progress (more or less), and posting from my own/better C64x in my Tv using Hdmi.


Offline odin

  • Colonization had Galleons
  • Hero Member
  • *****
  • Join Date: Feb 2002
  • Posts: 6796
    • Show only replies by odin
Re: A1200 Component broken
« Reply #13 on: December 12, 2010, 03:28:41 AM »
Is that 2,5" or 3,5"? 3,5 doesn't carry power and 2,5 does, so 2,5 plugged in wrong is likely to fry something.
Logged


Offline Zac67

  • Hero Member
  • *****
  • Join Date: Nov 2004
  • Posts: 2890
    • Show only replies by Zac67
Re: A1200 Component broken
« Reply #14 on: December 12, 2010, 09:53:18 AM »
Quote from: Retrofan;598226
Wait a moment... What about this?
http://cgi.ebay.es/MURATA-CSA3-00MG-CERAMIC-RESONATOR-3MHZ-NEW-LOT-/360160624395?pt=LH_DefaultDomain_0&hash=item53db3eff0b

$10 is pretty much a rip off. I could order one of these:

http://www.reichelt.de/?ACTION=3;GROUP=B41;GROUPID=3173;ARTICLE=2388 (0.43 €)
the next time I order from Reichelt - but since our last order went on Friday it'd be after the holidays.
Logged
