The A4000 that came back :-)
« on: February 13, 2008, 05:05:30 PM »
Hi all,

About 7 years ago I spent quite a few enjoyable hours getting an A4000 to work for a great friend of mine. Basically I fitted and partitioned a 2GB HDD, installed OS3.9 and put in the Cybervision64/3D that I had bought off of Amibench for him. Andy tragically caught that awful CJD and died 5 years ago :-( I didn't expect to ever see it again as his brothers were asked to sort out all his computer stuff. Then last night his widow let me know that his A4000 was still there and that I could have it as it would only be going to the dump.

Before I do anything with it I thought I'd take some pix, tell its story to you guys and ask a question or two :-)














I know that battery must be removed and some cleaning done, but do you think it would be ok to switch it on just the once to see if it still alive?  Or could switching it on as it is cause any chance of it surviving to be lost?

Thanks
Logged
A4000 Mad


Offline DoogUK

  • Sr. Member
  • ****
  • Join Date: Dec 2007
  • Posts: 344
    • Show only replies by DoogUK
Re: The A4000 that came back :-)
« Reply #1 on: February 13, 2008, 05:16:07 PM »
I would definately remove and clean first before switching it on.
Logged
a1200T/040@40/64mb/10 gig/CWB
a600/3.5mb/3.25gb
a1200/blizz 040@40/128mb/4gb compact flash/CWB A4000/40


Offline tokyoracer

  • Hero Member
  • *****
  • Join Date: Feb 2006
  • Posts: 1590
    • Show only replies by tokyoracer
Re: The A4000 that came back :-)
« Reply #2 on: February 13, 2008, 05:19:45 PM »
The battery, THE BATTERY!!! :-o  :-o  :-o
Logged


Offline AmiJIm

  • Jr. Member
  • **
  • Join Date: Dec 2005
  • Posts: 70
    • Show only replies by AmiJIm
Re: The A4000 that came back :-)
« Reply #3 on: February 13, 2008, 05:51:56 PM »
the battery!
you have to remove the battery ASAP!!!!!
dont replace it,just remove it.
clean the surface with alchohol,and post some high res pics in here .it seems to be in a bad condition....

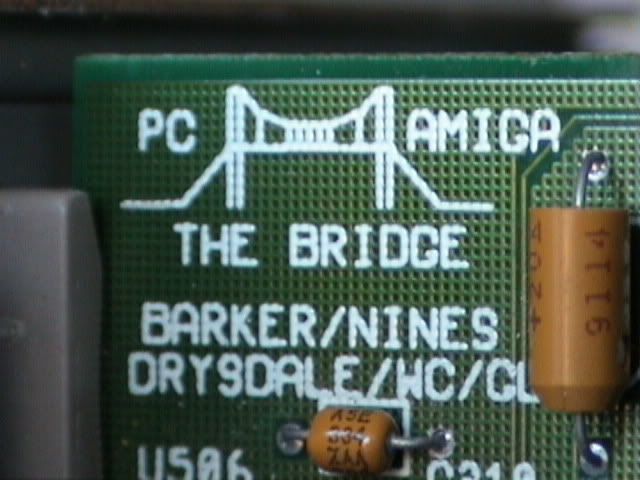

as for the extras,there seems to be a wrapengine ,with onboard scsi ,which you should use,and some that bridge card,which is useless.
have fun mate,that what your friend would want.
Logged


Offline A4000_MadTopic starter

  • Hero Member
  • *****
  • Join Date: Dec 2006
  • Posts: 1392
    • Show only replies by A4000_Mad
Re: The A4000 that came back :-)
« Reply #4 on: February 13, 2008, 06:08:59 PM »
Ok, I'll begin by removing the battery, thanks :-)
Logged
A4000 Mad


Offline countzero

  • Hero Member
  • *****
  • Join Date: Mar 2005
  • Posts: 1938
    • Show only replies by countzero
    • http://blog.coze.org
Re: The A4000 that came back :-)
« Reply #5 on: February 13, 2008, 06:26:36 PM »
what happened to the warp engine ?
Logged
I believe in mt. Fuji


ChuckT

  • Guest
Re: The A4000 that came back :-)
« Reply #6 on: February 13, 2008, 06:35:26 PM »

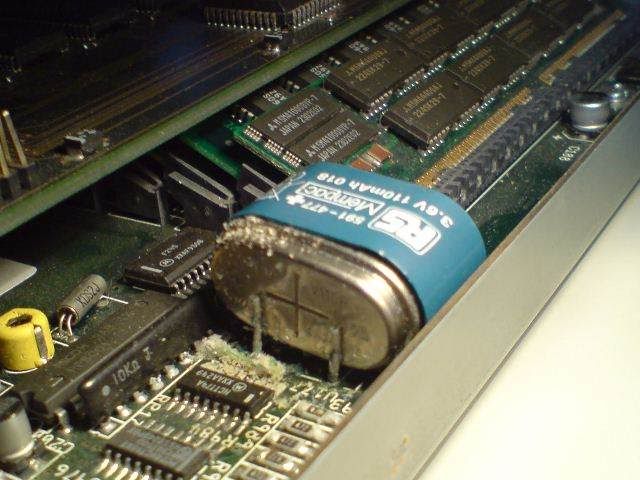

The battery says 3.6v in the picture.  10mah 018  Mempac 591-477.
Logged


Offline theformula

Re: The A4000 that came back :-)
« Reply #7 on: February 13, 2008, 06:40:02 PM »

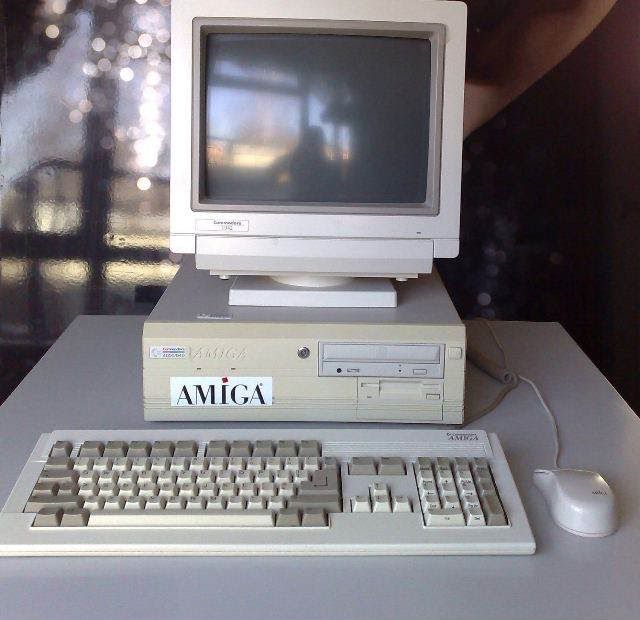

Nice to see you still have the latch cover thingy on the bottom on monitor as I have seen so many with it broken off.
Logged
A1200T Blizzard 1240/040/128MB Mediator Voodoo 3
A4000 Cyberstorm MkIII Picasso IV
A1200 020 Viper 8mb
Macmini G4 Morphos 3.1
2x A4000/030 Stock


Offline tokyoracer

  • Hero Member
  • *****
  • Join Date: Feb 2006
  • Posts: 1590
    • Show only replies by tokyoracer
Re: The A4000 that came back :-)
« Reply #8 on: February 13, 2008, 06:49:13 PM »
 :lol: Sorry about that. It's a loverly story and it's nice to see it has a new home. :-)
Logged


Offline meega

  • Hero Member
  • *****
  • Join Date: Jul 2006
  • Posts: 952
    • Show only replies by meega
Re: The A4000 that came back :-)
« Reply #9 on: February 13, 2008, 06:59:27 PM »
Quote

ChuckT wrote:
The battery says 3.6v in the picture.  10mah 018  Mempac 591-477.

110 mAh.
Logged
:)


Offline A4000_MadTopic starter

  • Hero Member
  • *****
  • Join Date: Dec 2006
  • Posts: 1392
    • Show only replies by A4000_Mad
Re: The A4000 that came back :-)
« Reply #10 on: February 13, 2008, 07:18:04 PM »
Quote
tokyoracer wrote:

It's a loverly story and it's nice to see it has a new home. :-)


Many thanks. I feel sure that Andy would have wanted me to have it :-)


Quote
countzero wrote:

what happened to the warp engine ?


I don't quite understand your question. It worked perfectly and was extremely fast the last time it was here. Does it look faulty or like something is missing to you mate?



Quote
ChuckT wrote:

The battery says 3.6v in the picture. 10mah 018 Mempac 591-477


Yes, it's not the standard type. Andy had it prefessionally fitted. He changed the ROMS to 3.1 but didn't want to mess around with the mobo battery. I can't say I enjoy doing it either :nervous:


Quote
theformula wrote:

Nice to see you still have the latch cover thingy on the bottom on monitor as I have seen so many with it broken off.


Yes, it's in pretty good condition. I tried it on my Picasso II today. It displayed 640x 480 16bit ok along with Hi Res and Hi Res Laced. Anyone know what the maximum is for the Commodore 1942 as I don't want to push it too hard and break it?

Logged
A4000 Mad


Offline countzero

  • Hero Member
  • *****
  • Join Date: Mar 2005
  • Posts: 1938
    • Show only replies by countzero
    • http://blog.coze.org
Re: The A4000 that came back :-)
« Reply #11 on: February 13, 2008, 07:23:15 PM »

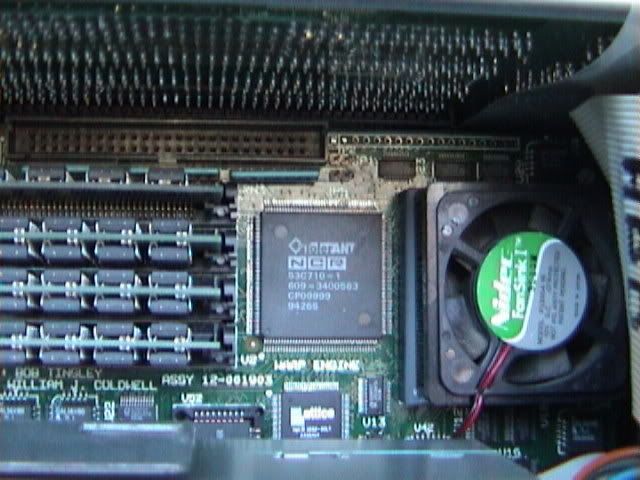

sorry, there seems to be a white dust or specle between the NCR chip and the SCSI port.
Logged
I believe in mt. Fuji


Offline Krusher

  • Sr. Member
  • ****
  • Join Date: May 2003
  • Posts: 450
    • Show only replies by Krusher
Re: The A4000 that came back :-)
« Reply #12 on: February 13, 2008, 07:23:27 PM »
Quote

A4000_Mad wrote:...
Quote
countzero wrote:

what happened to the warp engine ?


I don't quite understand your question. It worked perfectly and was extremely fast the last time it was here. Does it look faulty or like something is missing to you mate?...


Look closely at the top of the NCR chip, is that dust on the circuitboard or is it corroded??
Logged


Offline meega

  • Hero Member
  • *****
  • Join Date: Jul 2006
  • Posts: 952
    • Show only replies by meega
Re: The A4000 that came back :-)
« Reply #13 on: February 13, 2008, 07:31:33 PM »
Quote
A4000_Mad wrote:
Anyone know what the maximum is for the Commodore 1942 as I don't want to push it too hard and break it?

Odds are that it will take most standard and doubled Amiga modes at full overscan.
http://amigahardware.mariomisic.de/cgi-bin/showhardware_en.cgi?HARDID=854
Logged
:)


Offline A4000_MadTopic starter

  • Hero Member
  • *****
  • Join Date: Dec 2006
  • Posts: 1392
    • Show only replies by A4000_Mad
Re: The A4000 that came back :-)
« Reply #14 on: February 13, 2008, 07:33:20 PM »
I see what you mean by the photo above. Just looked at the real Warp Engine and it is spotless. Wierd! Mind you, the top 3 pix were taken with a Nokia N95 and the bottom 3 were just grabbed to the memory stick of my old a Sony DCR TRV-320E camcorder.
Logged
A4000 Mad
