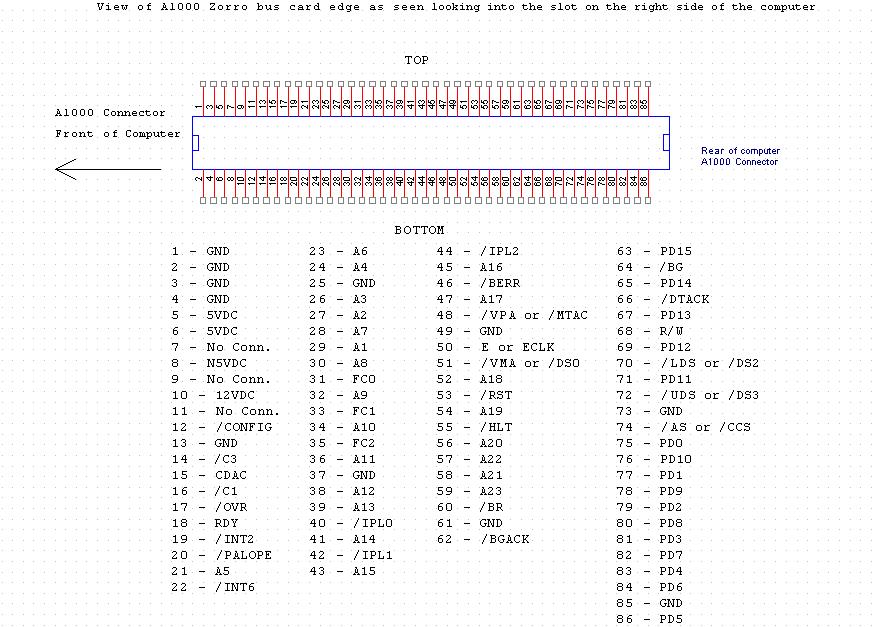

Description: This is a drawing that I made based on schematics for the A1000 and a couple of documents that I found on the web which describe the Zorro slot. I have verified this against my A1000. I have tried to be as specific about the orientation of this connector view as possible. I hope you find this useful. -AmigaEd Picture Stats: Views: 4329 Filesize: 111.71kB Height: 768 Width: 1024 Posted by: AmigaEd at April 08, 2005, 03:40:04 AM Image Linking Codes
|
||
