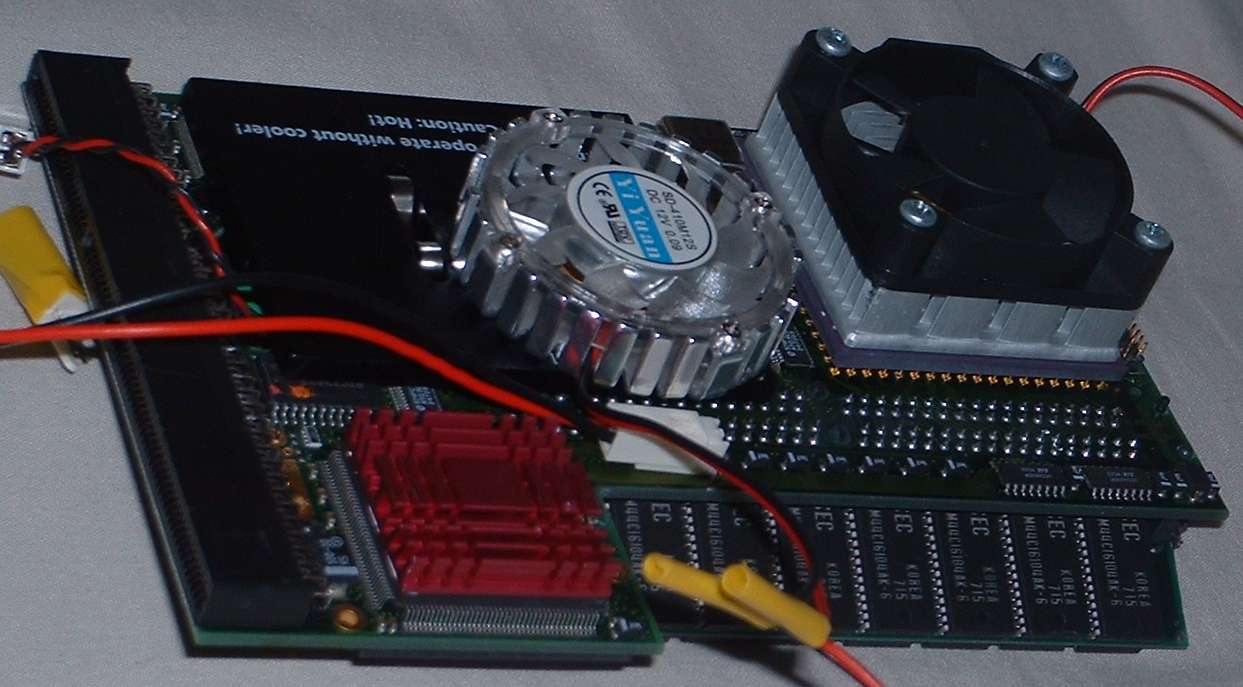

Description: Here's a picture of my BlizzardPPC card. 68060 @ 50Mhz / 603e @ 240Mhz / On-board SCSI The card has not been overclocked in any way, however in order to keep it properly cooled, I felt that I should add some extra heatsinks and fans, just to be safe. The original small fan has been disconnected and I've placed a VGA-type fan on top of the PPC heatsink. I've used adhesive thermal paste to secure it. Before, when only the small Phase 5 provided fan was used, the PPC heatsink would get extremely hot. So hot in fact that you wouldn't be able to hold your finger on it for longer than 3 seconds, without getting burned. Now that the new fan is cooling the PPC heatsink you can safely touch it, without your getting burned. It's so cool now that you can hold your finger on the heatsink and only feel that it's slightly warm. :-) I've disconnected the old fan from getting power, as all it does at this point is attract unnecessary dust in the area of the 603e chip. The fan power connector gets extra +5V from the power supply (more power for healty BPPC operation is always a good thing). There's also a heatsink and a fan over the 68060 chip. Probably only the heatsink would be sufficient to keep the 68060 cool, however I figured why not, so I've added a fan as well. :-) This 68060 chip (like most of 060 chips anyway) runs pretty cool, regardless if there's a heatsink on it or not. Last but not least, there's a smallish heatsink installed over the SCSI chip...just in case. ;-) Picture Stats: Views: 3095 Filesize: 92.78kB Height: 768 Width: 1024 Posted by: x56h34 at April 05, 2005, 05:23:02 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| klx300r Posts:3261 | March 29, 2018, 04:19:03 AM more airflow the better:hammer: |
| paul1981 Posts:2157 | December 04, 2009, 08:09:44 PM This card will probably outlive all of us :laughing: |
| Faerytale Posts:187 | December 10, 2007, 03:53:45 PM I wouldnt call it a hack. An addon i would say  |
| Dr_Righteous Posts:1345 | March 13, 2007, 12:44:30 AM You can never keep a CPU too cool, let alone two. Great hack! |
| Leifern Posts:298 | August 11, 2005, 12:37:06 AM You are crazy, my friend!!! :-o |
| adonay Posts:1144
| April 11, 2005, 07:39:51 PM Wow thats one hacked upp board i must say. i gues it most be loud fan noise from it adonay :-D |
