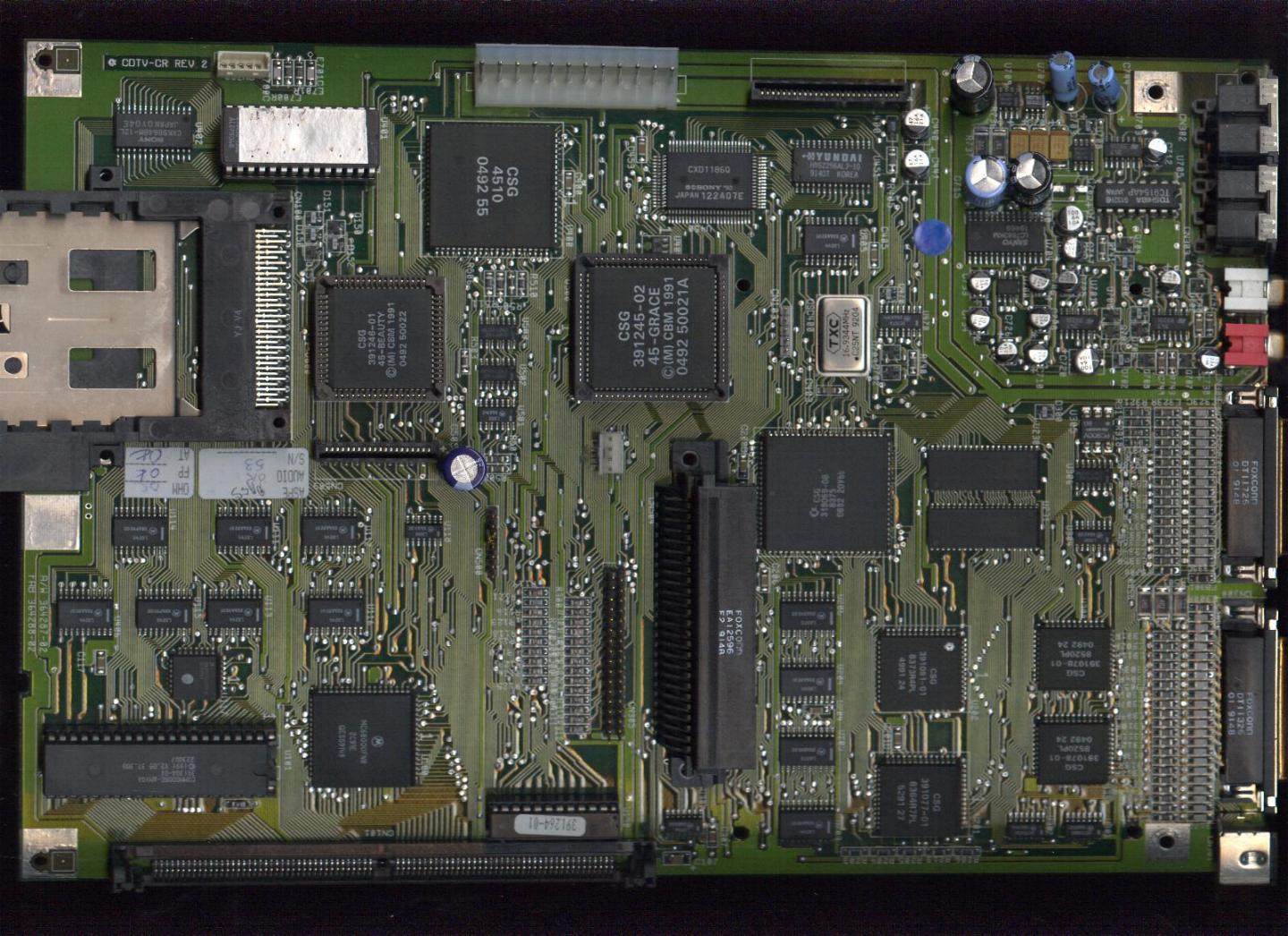

Description: Yep, this is the motherboard of the CDTV CR. Things to note: The new custom chipset made just for the CDTV CR prototype. (Called Beauty and Grace) The port to the right of the power connector is the CD-Rom interface. (for a double speed tray loading CD-Rom drive) PCMCIA slot. The large connector is for the video card (Like, but not the same, as the orignal CDTV) which now includes extra lines to support an optional FMV card. This is a revision 2 board. Picture Stats: Views: 2649 Filesize: 270.47kB Height: 768 Width: 1024 Posted by: Oli_hd at October 16, 2004, 12:19:18 AM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Oli_hd Posts:912
| April 25, 2006, 01:05:06 PM Quote We all want to know the answers, but will we get a {bleep}ing answer? Pigs will be flying and throwing snowballs at each other in hell before..... Or just look at the other pictures I uploaded and see the link to: http://www.cdtv.org.uk/1276.html :-D |
| Cyberus Posts:5696
| August 10, 2005, 03:40:08 AM We all want to know the answers, but will we get a {bleep}ing answer? Pigs will be flying and throwing snowballs at each other in hell before..... |
| Jose Posts:2871
| October 16, 2004, 03:19:24 PM Wow! First time I've seen any mention on this thing. When was this prototype made? And more importantly what were the specs of this new custom Amiga chipset? :-) |
