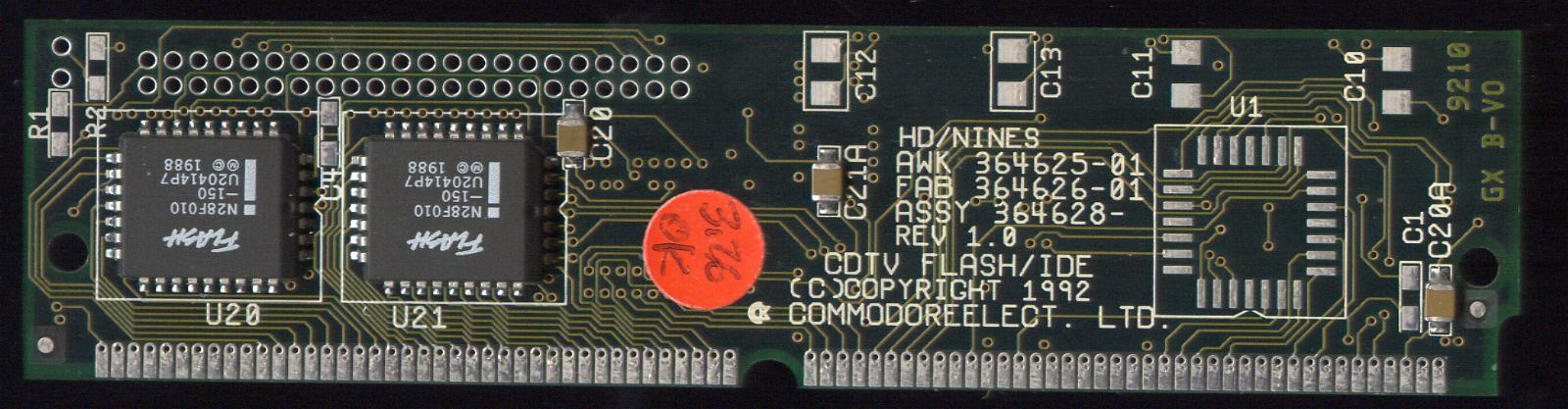

Description: This SIMM adds a 2.5" 44pin IDE interface and two flash chips It is found as standard in all the prototypes but the IDE port is always unpopulated. Picture Stats: Views: 2164 Filesize: 137.87kB Height: 768 Width: 1024 Posted by: Oli_hd at October 13, 2004, 03:53:22 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| fiat1100d Posts:140
| March 26, 2009, 10:03:40 AM @ tokyoracer: probably U1 would have been some PAL for controlling IDE, I don't think it would work when just adding the header. |
| tokyoracer Posts:1590 | April 20, 2008, 02:41:26 PM Would it work with a port solderd on? |
| delshay Posts:1009
| January 24, 2007, 04:42:21 AM if this device had worked imagine DMA access... |
| PaSha Posts:537
| August 28, 2005, 11:00:42 AM Quote
Or perhaps by using standard size stuff they could save money (off the shelf simm sockets, standard size simm pcb)? Just imagine if they had used standard stuff on other areas, like power-supplies (except the A4000T that is standard PC AT). Could have save some cash in the old days... |
| MrZammler Posts:720 | October 14, 2004, 08:25:26 AM That's to show again just how brilliant and ahead of their time commodore's engineeres where while working on the cdtv... |
| Karlos Posts:16879 | October 13, 2004, 11:05:00 PM That's the first time I ever saw anything like that :-D |
| Orjan Posts:515
| October 13, 2004, 10:41:44 PM Something tells me this isn´t a standard industry SIMM, but Commodore found it amusing to use the same formfactor to piss people off.. :-) |
