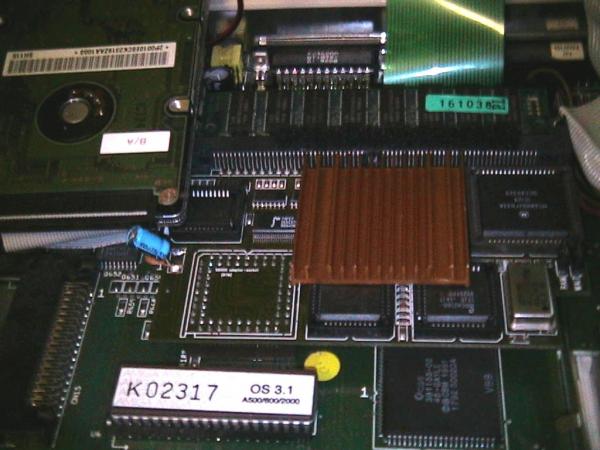

Description: This is a closeup of the board: Notice the 2 capacitors on the left side (68000 socket). I couldn't find an SMD ceramic cap, so I used a regular one. Picture Stats: Views: 2713 Filesize: 42.77kB Height: 768 Width: 1024 Posted by: Cass at March 22, 2004, 11:58:05 AM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| rkauer Posts:3263 | November 17, 2007, 09:45:58 PM If I was you, I put a small heatsink on the FPU, too. They usually die by the heat (specially the 50MHz versions). |
| koaftder Posts:2116 | February 04, 2006, 07:01:04 AM The electroylitic is the pitcher, the ceramic is the catcher. |
| Dr_Righteous Posts:1345 | December 28, 2005, 02:46:10 AM As stated in part one, to help stabilize the voltage on a poorly designed CPU upgrade. |
| orange Posts:2796 | October 14, 2005, 01:01:39 PM why did you have to replace/put that capacitor? |
