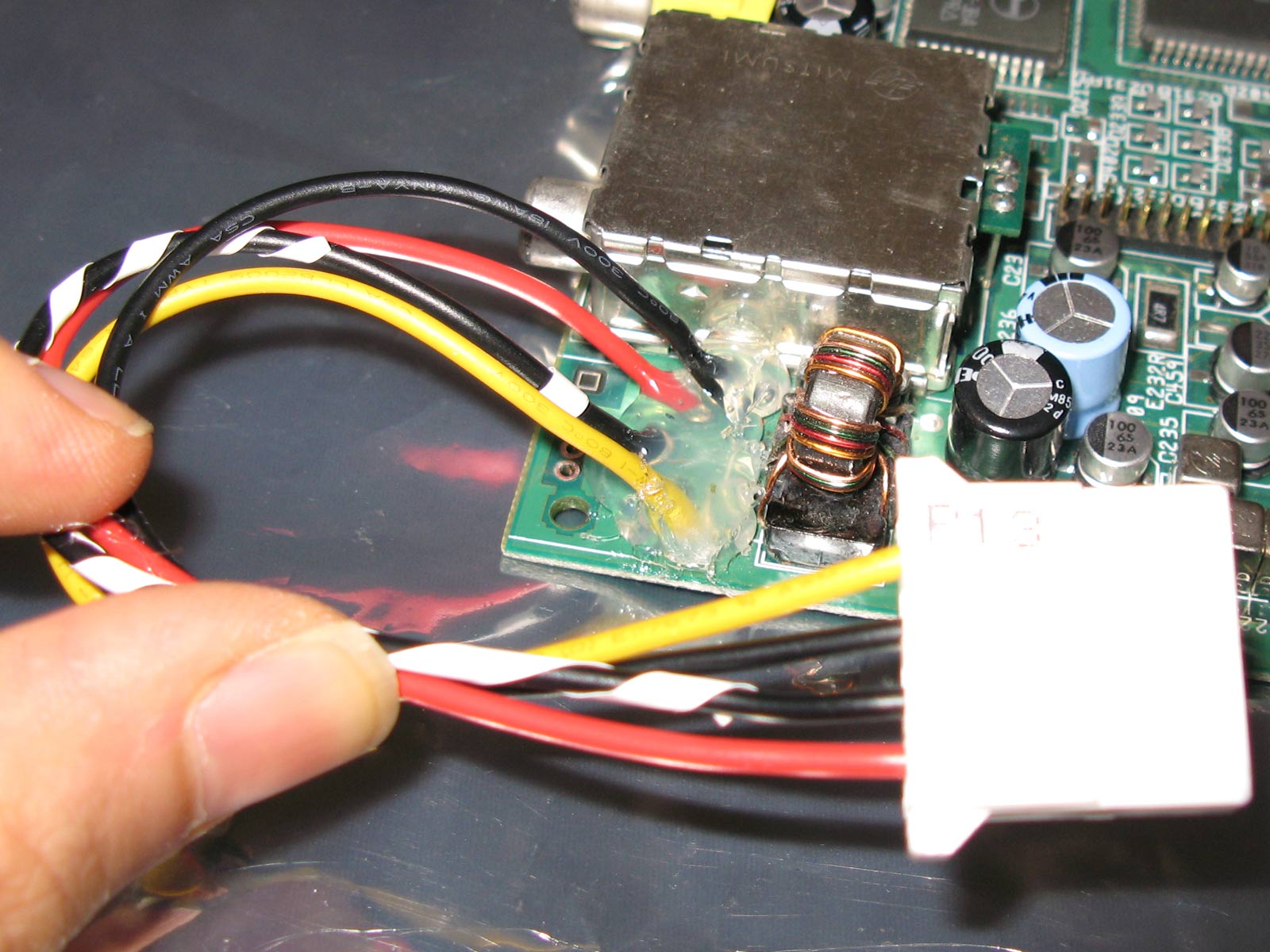

Description: I had to replace original PSU connector with this for tower hack. (ATX PSU in bottom of big tower is too close to motherboard to use original connector) The -12VDC line is the black one with white stripes as warning. The 'molex' is female one, to avoid accidents.. It does work. Picture Stats: Views: 1545 Filesize: 219.63kB Height: 768 Width: 1024 Posted by: orange at December 17, 2008, 12:19:16 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| HuanKV Posts:14
| December 18, 2008, 11:18:00 PM Trebao si da poseces nokte ...  |
| orange Posts:2796 | December 17, 2008, 01:27:39 PM I forgot to say the hot glue has been used to protect the 'connection', as you can see. PS. bah, forgot to trim the fingernails :shrug: |
