| A1200 custom case project - update #1 | ||
 |
||
| Previous Image | Next Image | ||
|

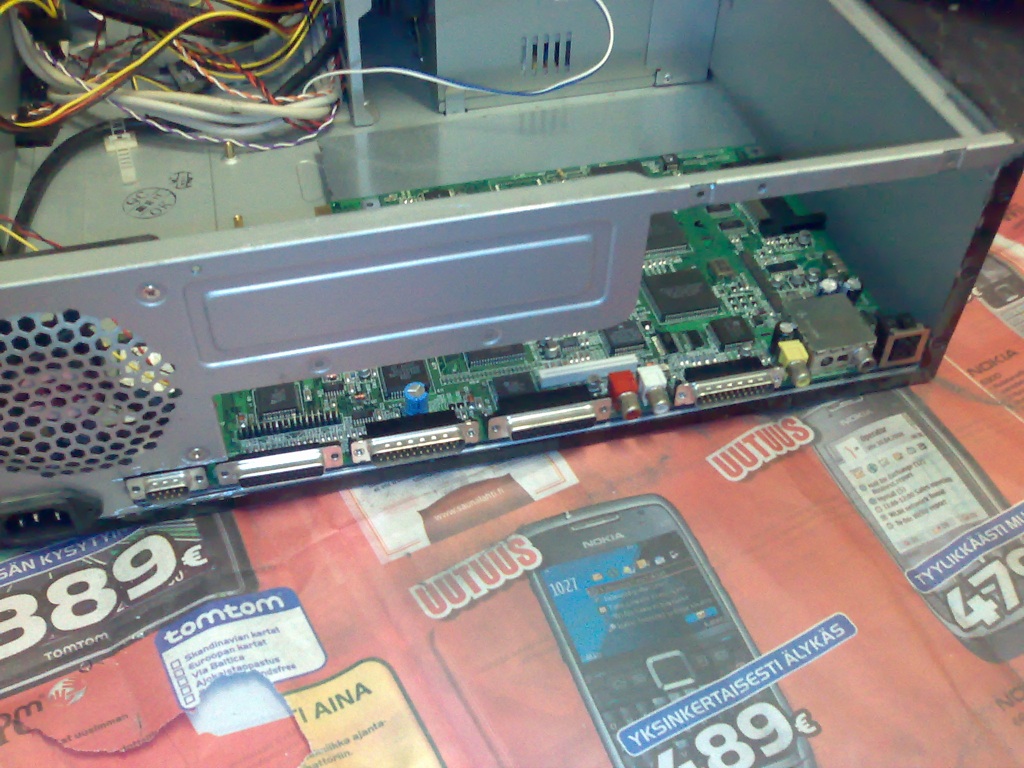

Description: The backplate of the case now looks like this. The piece of metal underneath the mobo is the custom holder, cut off to the same shape as the motherboard. The expansion slot will require a holder of its own in order to fit and support cards correctly. This will be done as a plastic frame to support better ventilation. The mobo will be screwed onto the holder and soon to be finished backplate in order to keep it in place.
Picture Stats: Views: 1708 Filesize: 275.93kB Height: 768 Width: 1024 Posted by: mikolas at July 25, 2008, 12:20:04 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Bildheinze Posts:45
| July 25, 2008, 06:42:50 PM I would remove the RF box with the rf out...only keep it when u really need it. |
