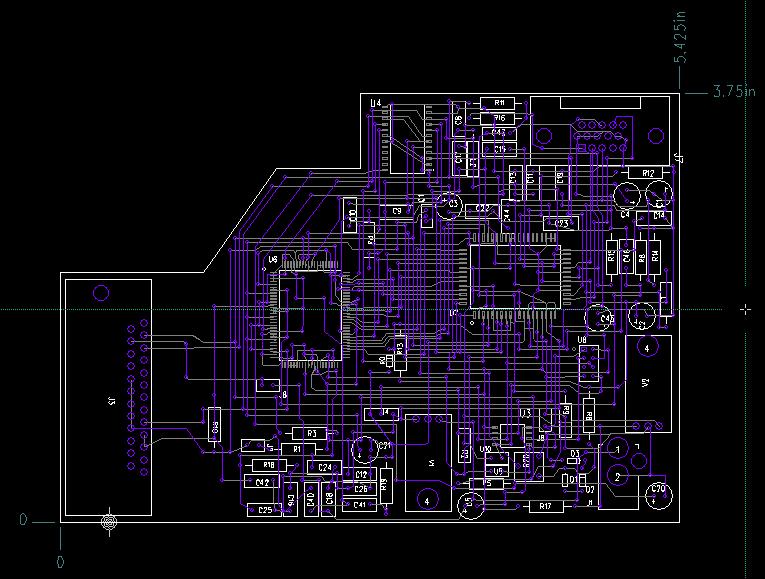

Description: This is an Amiga specific layout for a 16 bit scan doubler based on the work of Roy R. Justus I worked out around May 2008.
Picture Stats: Views: 1875 Filesize: 88.72kB Height: 768 Width: 1024 Posted by: Plaz at July 14, 2008, 02:02:20 AM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Plaz Posts:1699 | July 14, 2008, 05:18:01 PM I still have the files but they are PCB123 specific. (Same service Roy uses) I had the thought to market these, but time and money are major obstacles. So I decided to post the image and start a thread to talk about it. You just replied to the photo, before I could post a thread. I thought this might be a project AmiKit could have some interest in also. Watch for the thread coming soon now that the photo's been approved. Plaz |
| tokyoracer Posts:1590 | July 14, 2008, 01:07:21 PM Would be nice for someone to remake a flickerfixer/scanboubler that is actually affordable. |
| rkauer Posts:3263 | July 14, 2008, 05:45:27 AM Do you still have the .sch file? I'm interested!;-) |
