| (nearly) completed handbuilt Minimig | ||
 |
||
| Previous Image | Next Image | ||
|

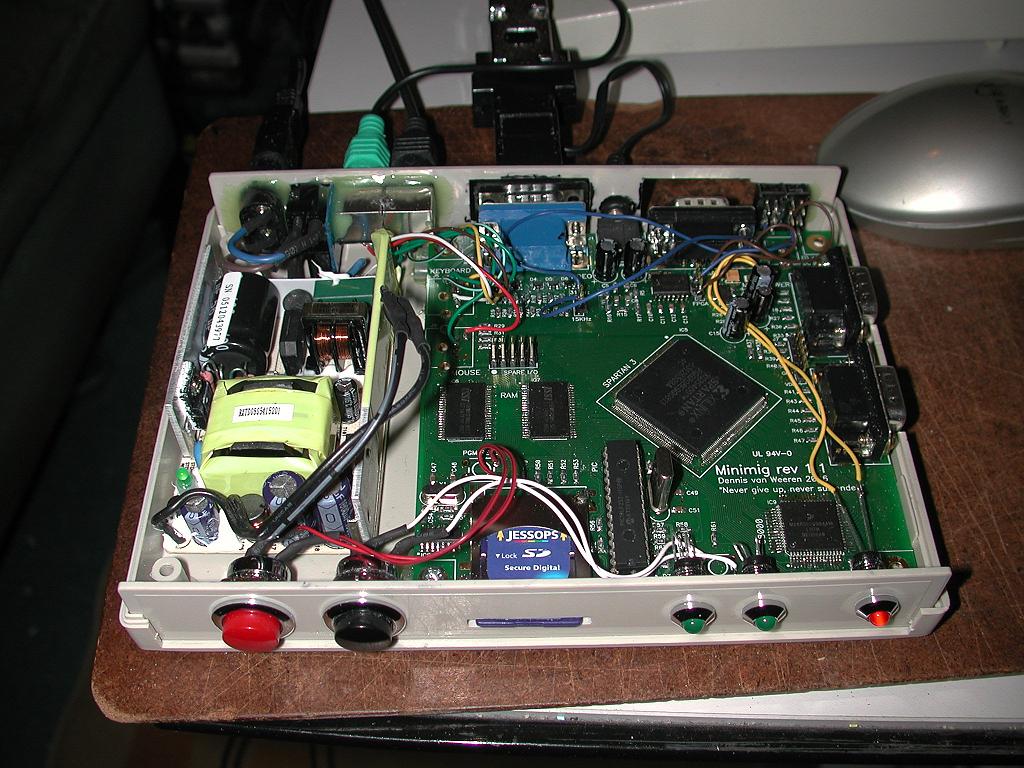

Description: Well, after months of gathering parts and lurking on the forums I can proudly show off my handbuilt Minimig. All I need to do is pop the top on and clean it up and it will be complete! The PSU that's inside there is a regulated 5 volt switchmode I was originally going to use in a supergun, so there's plenty of amperage there if needed. The dongle hanging out of the VGA port is a simple 15 pin to 9 pin adapter to carry the RGB to my TV and the audio to my amp (I made similar adapters for my other machines) Picture Stats: Views: 1740 Filesize: 152.74kB Height: 768 Width: 1024 Posted by: Hojo Norem at June 11, 2008, 01:26:25 AM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Hojo Norem Posts:12
| May 12, 2009, 06:57:32 PM Thanks for pointing that out! I hadn't really thought it would be a problem but it's always good practice to check for things like that. In this instance I was just to impatient in getting the thing working. I'll sort it out when I get round to fitting the ARM board (when I get the parts and build it eventually). |
| Speelgoedmannetje Posts:9656 | April 05, 2009, 09:24:04 PM You better take care those LED pins won't shortcut the pins on the chip right down. :-o |
| Hojo Norem Posts:12
| June 13, 2008, 01:17:06 PM You may ask.... :lol: I got it from Rapid Electronics: ABS instrument/modem cases |
| Chain Posts:1324 | June 13, 2008, 06:47:14 AM Very nice! May i ask where you get that plastic case? |
| CD32Freak Posts:646 | June 11, 2008, 07:02:15 PM Excellent, be creative, that's the Amiga spirit! :-D |
| tokyoracer Posts:1590 | June 11, 2008, 11:57:41 AM Oh wow, thats a real nice looking MiniMig. |
