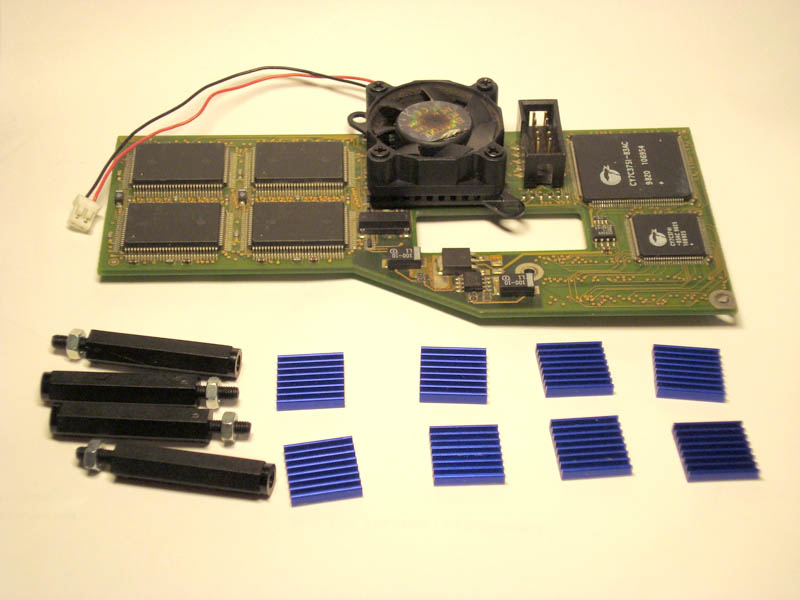

Description: This is a BlizzardVision with a small 30 mm heatsink/fan. The fan is burned out so I am going to replace it and also come up with a solution of how it is going to be attached to the graphics card (not permanently). The blue heatsinks are for my CyberStormPPC, they are going to be attached to the chips between the 72-pin SIMM sockets and the standoffs are going to be mounted in my A4000 D so that I can remove the PPC-card easely in the future.
Picture Stats: Views: 1262 Filesize: 76.51kB Height: 768 Width: 1024 Posted by: cv643d at May 08, 2008, 09:52:35 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Gavilan Posts:651 | February 21, 2009, 01:36:43 PM Very interesting indeed Can i ask you where did you get those little blue heatsinks? In My country, they are impossible to find....and they would be great for cooling some stuff i have... Cheers! Sebastian |
| delshay Posts:1009
| May 12, 2008, 07:44:58 PM error |
| delshay Posts:1009
| May 12, 2008, 07:41:23 PM you have the correct size fan excellent. you could try this **at your own risk**. use a 5v fan & connect it to the 5v power point near the Bvision regulator or fit a socket. this will make the Bvision a complete unit with cooling. *** all modification at your own risk *** |
