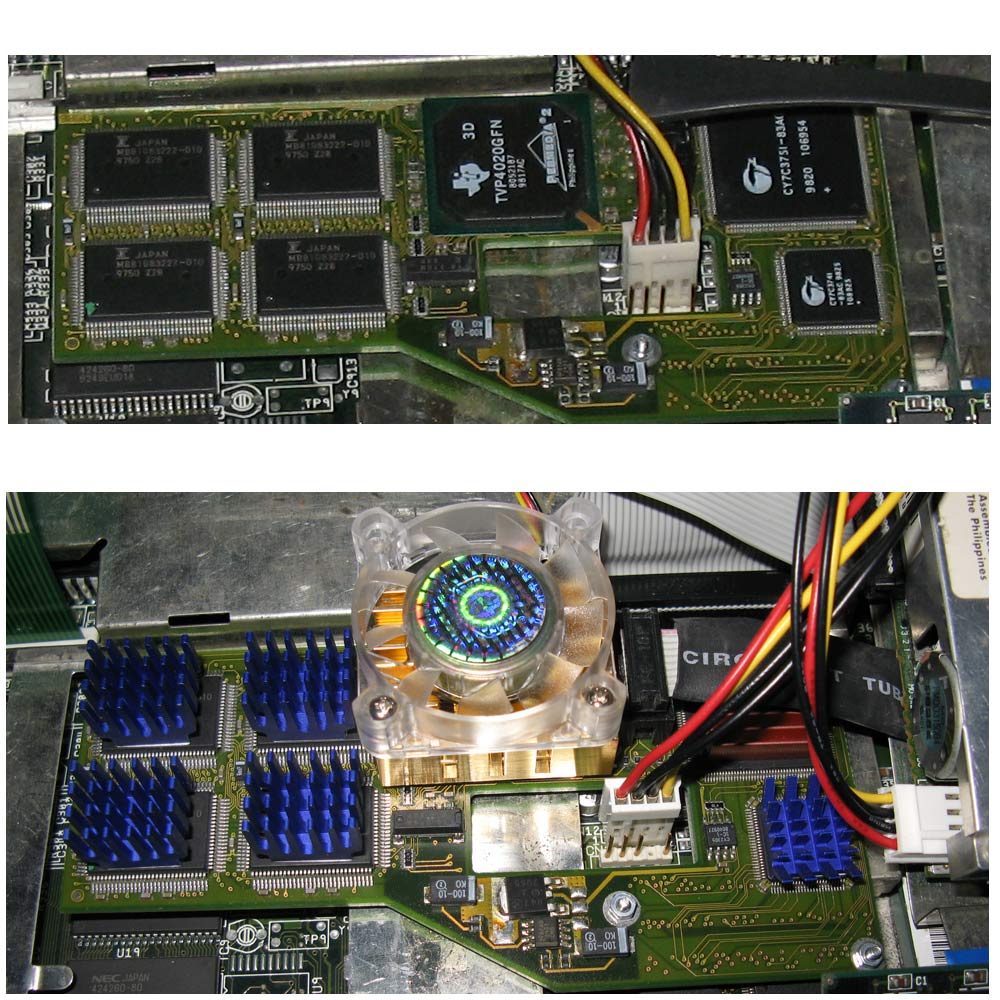

Description: Here's 'before and after' photo of BVision. I had to shorten the heatsink below fan (on Permedia) so that it would fit. BTW, its dangerously close to RAM chip. Maybe I should have used better memory coolers (one covering two chips at once). Picture Stats: Views: 1856 Filesize: 179.96kB Height: 768 Width: 1024 Posted by: orange at May 07, 2008, 11:43:09 AM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| delshay Posts:1009
| May 14, 2008, 01:19:28 PM excellent job. if any cooling is to done on the memory chips i dont see any point in cooling only half of them. there are four memory chips on the other side of the board. a 5v fan can also be connect near the 5v regulator. ** all modification at your own risk ** |
| tokyoracer Posts:1590 | May 08, 2008, 09:54:38 AM Looks real neat, I like it alot. Well done. |
| cv643d Posts:1197 | May 08, 2008, 08:50:40 AM No that is not overracting. This card gets really hot. Good idea to run active cooling on the Permedia. I noticed on my card even the chips on the bottom half of the card gets really hot so I was thinking of putting minimal heatsinks on them to. However I am going to run a 30 mm fan/heatsink on my BVision. |
| clemenza Posts:93
| May 08, 2008, 08:17:41 AM Very good job, but don't you think you 're overreacting a little bit? Mine worked flawlessly for about a year without any coolers. Ahhh... good times, especially in the winter! :crazy: |
| rkauer Posts:3263 | May 08, 2008, 05:12:43 AM Just put some insulation between the cooler and the RAM chip's legs! [EDIT] A better idea: take that Permedia 'sink out and take out a bit of the bottom side to make it "unreachable" to the RAM chips. Then glue it again. |
