From tape to hard disk - Photo 2 of 2
From tape to hard disk - Photo 2 of 2
Previous Image | Next Image

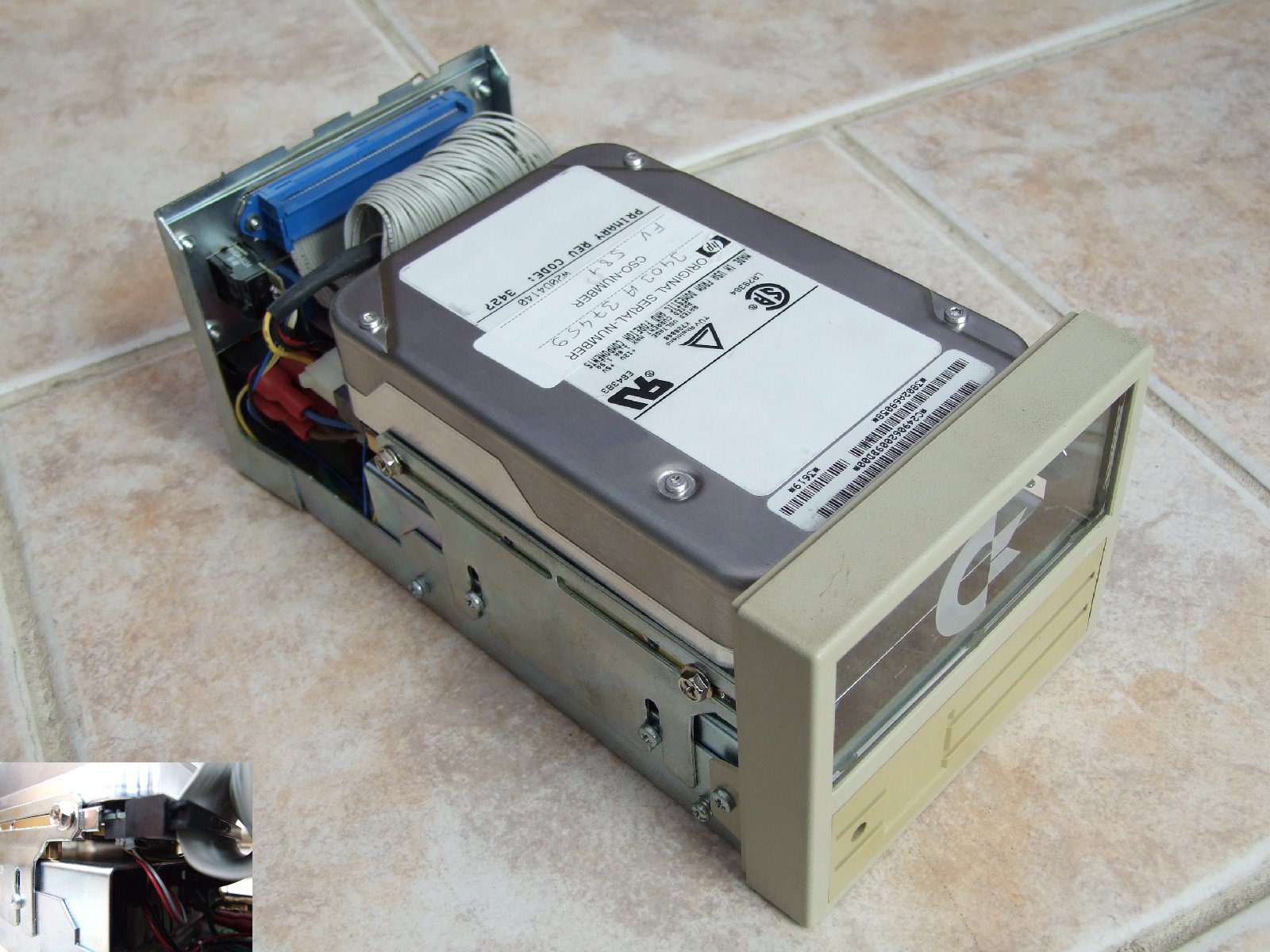

Description: I've removed the original defunct SCSI tape drive and added a 2.1GB 1.6" SCSI HDD, as well as adding spacers to allow the wiring up of the SCSI ID switch on the case to the jumpers on the bottom of the HDD (As shown by the insert photo).

The transparent C= styled blanking plate also allows the HDD activity LED to be visible on a wide range of different SCSI HDD's without the hassle of relocating the LED or adding light guides.

(Thanks to Holley for the enclosure and Zac67 for the 1.6" HDD)
Picture Stats:
Views: 1367
Filesize: 291.22kB
Height: 768 Width: 1024
Posted by: Hodgkinson at April 12, 2008, 04:06:07 PM
