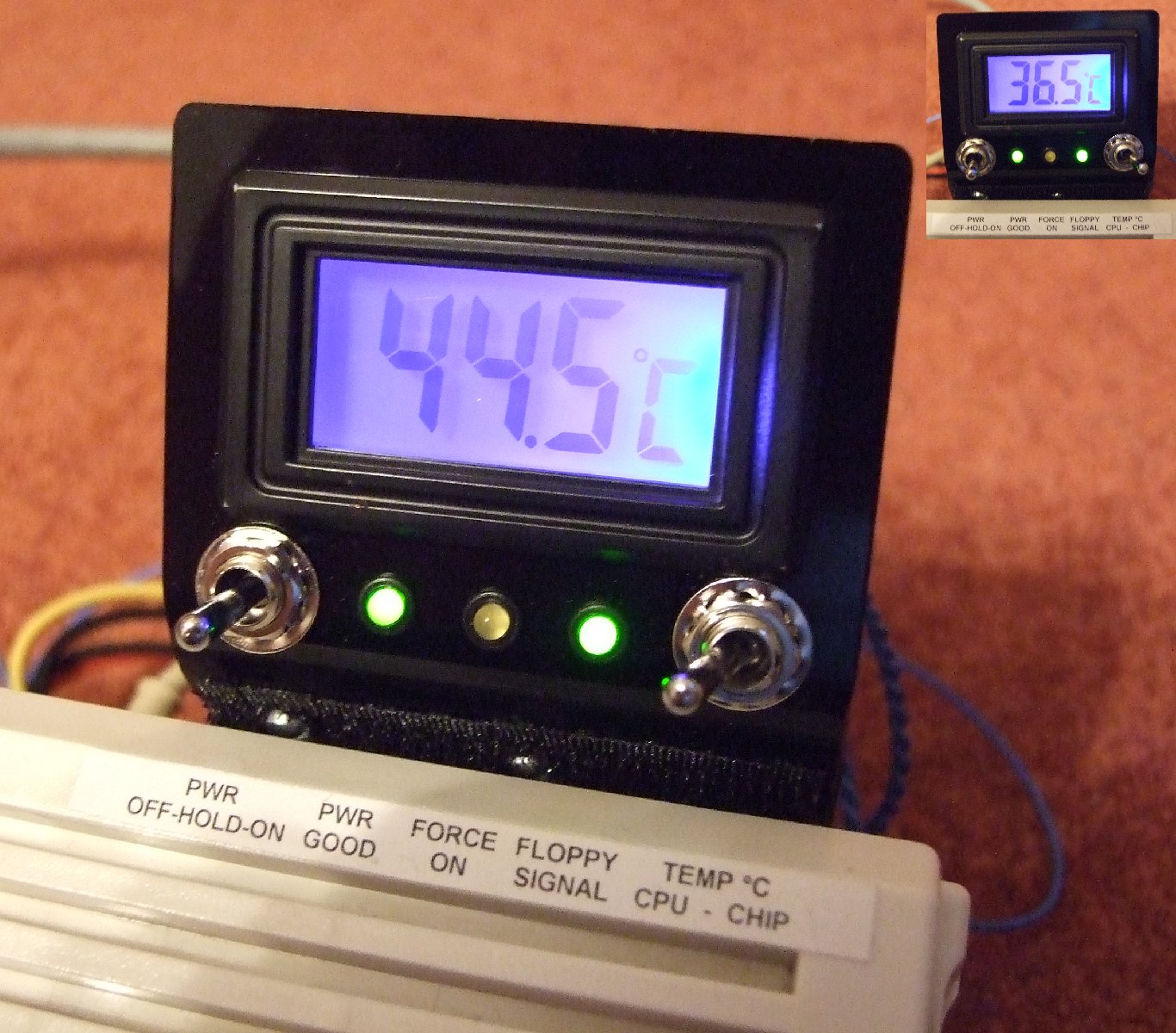

Description: This is the other end of the ATX mod project - The control panel. At the rate the MK2 version of the ATX mod is progressing, I might never quite finish it. So I thought, what the heck, let's post a photo of the display working anyway :crazy: The temperatures had more-or-less stabilised when the photos were taken. Note that both the CPU/FPU (1230IV '030 + 68882 50Mhz) and the custom chips (A1200 AGA) are heatsinked as per my other photos. Picture Stats: Views: 1915 Filesize: 285.61kB Height: 768 Width: 1024 Posted by: Hodgkinson at March 29, 2008, 10:46:06 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Hodgkinson Posts:1080 | March 30, 2008, 09:44:51 PM When the force is on, you've got the POWER! :-D (Permanently, irrespective of software shutdown commands as a matter of fact...Great for debugging) |
| Orjan Posts:515
| March 30, 2008, 06:10:43 PM It´s good to know when the force is on. You never know when you want to pick something up without using your hands. :-) |
