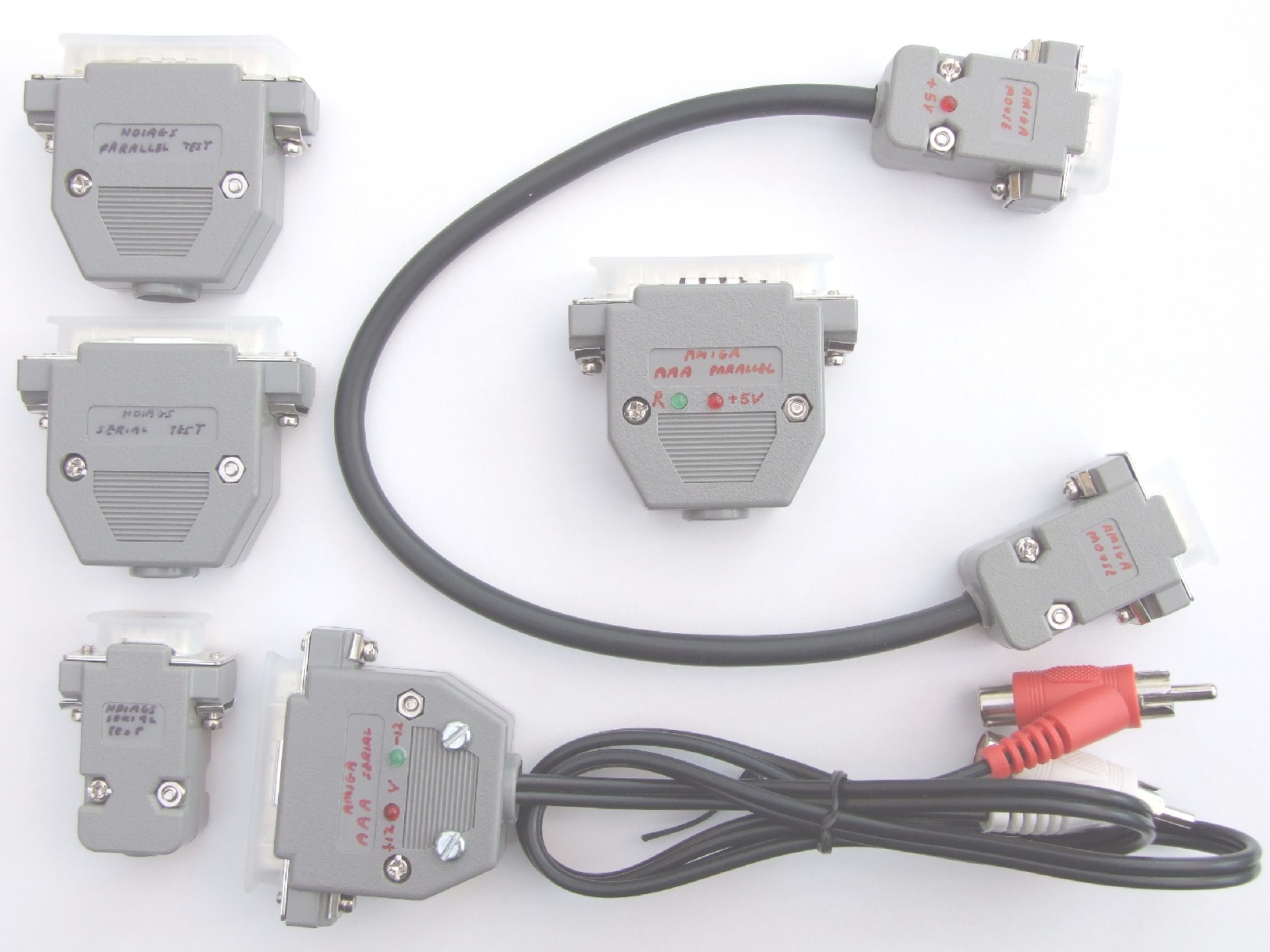

Description: A range of home made port-testers ;-)

The adaptors with the black writing are for Norton Diagnostics. The ones with the red writing are for the Advanced Amiga Analyser (AAA) software (I didn’t make any for the video or floppy ports since these require 23 Pin D-Connectors and no real tests are performed on these ports by the AAA software).

Note the supplementary audio connectors on the AAA serial dongle and the use of dust caps on all of the D connectors.
The D connector shells have even had blanking plates mounted in the back of each one, to stop muck and conductive objects dropping inside.

PS. If you make your own AAA dongles up, check in an Amiga manual which grounds do what. I nearly ended up wiring the LED grounds to the "Shield earth" instead of the "System earth" in the serial dongle.
