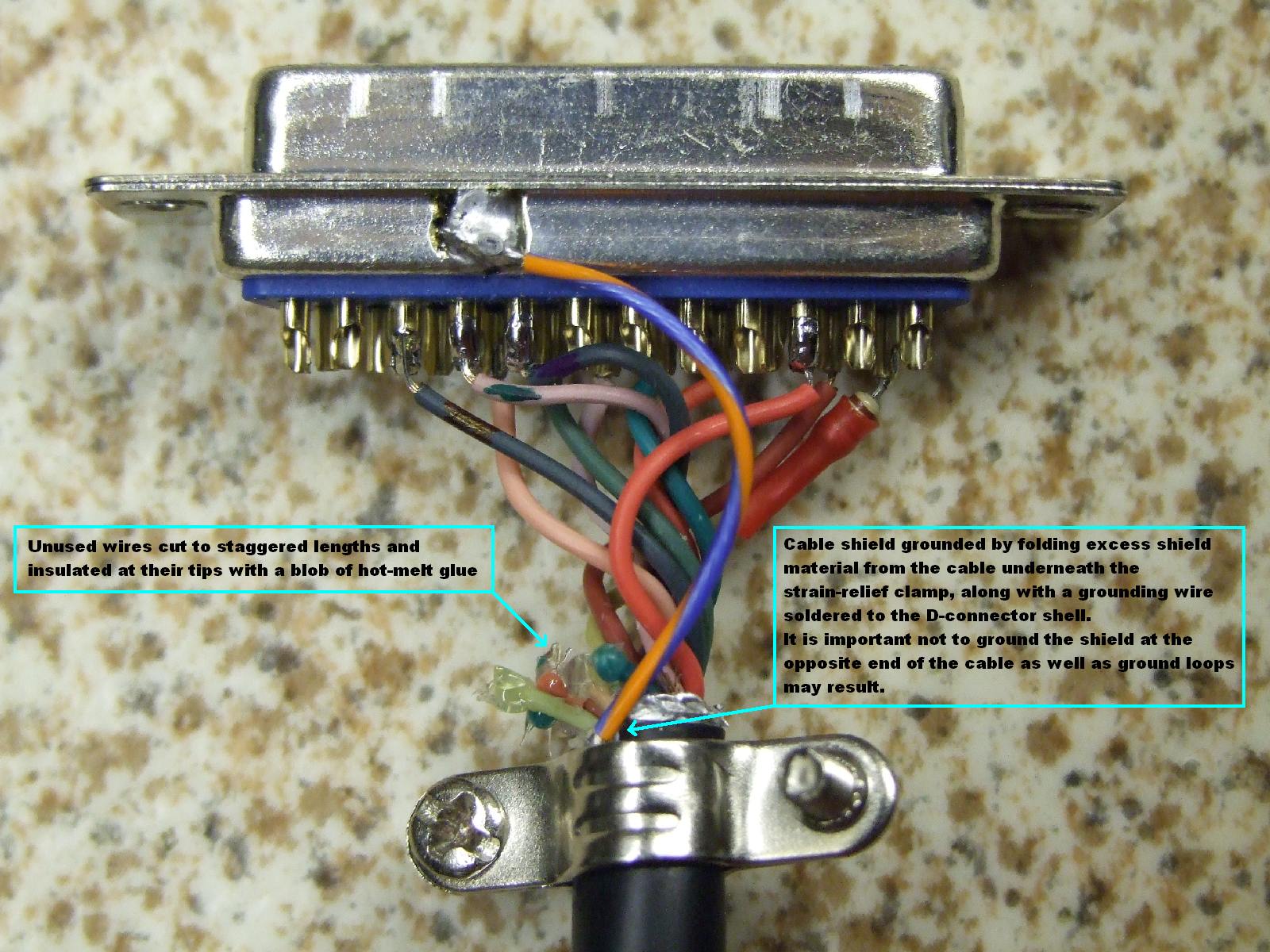

Description: Some simple mods to improve AmigaKit's RGB cable. => The unused wires within the 23pin D connector housing had originally been left bare, posing a potential situation in which any of the signal feeds emanating from the TV could be shorted out. Insulating the ends of these wires has removed this risk. => Originally the cable shield had not been grounded. Grounding the cable shield has aided in reducing the noise on the picture slightly. Picture Stats: Views: 1461 Filesize: 283.83kB Height: 768 Width: 1024 Posted by: Hodgkinson at March 07, 2008, 07:22:13 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Hodgkinson Posts:1080 | March 07, 2008, 10:45:01 PM Yep. 23 Pin D (From the Amiga RGB Video port) to SCART. EDIT: With the D-connector hood removed, of course (Heh, forgot to mention that one...) |
| adonay Posts:1144
| March 07, 2008, 10:40:52 PM What cable is this the scart one ? |
