| A2386SX Bridgeboard coin cell hack | ||
 |
||
| Previous Image | Next Image | ||
|

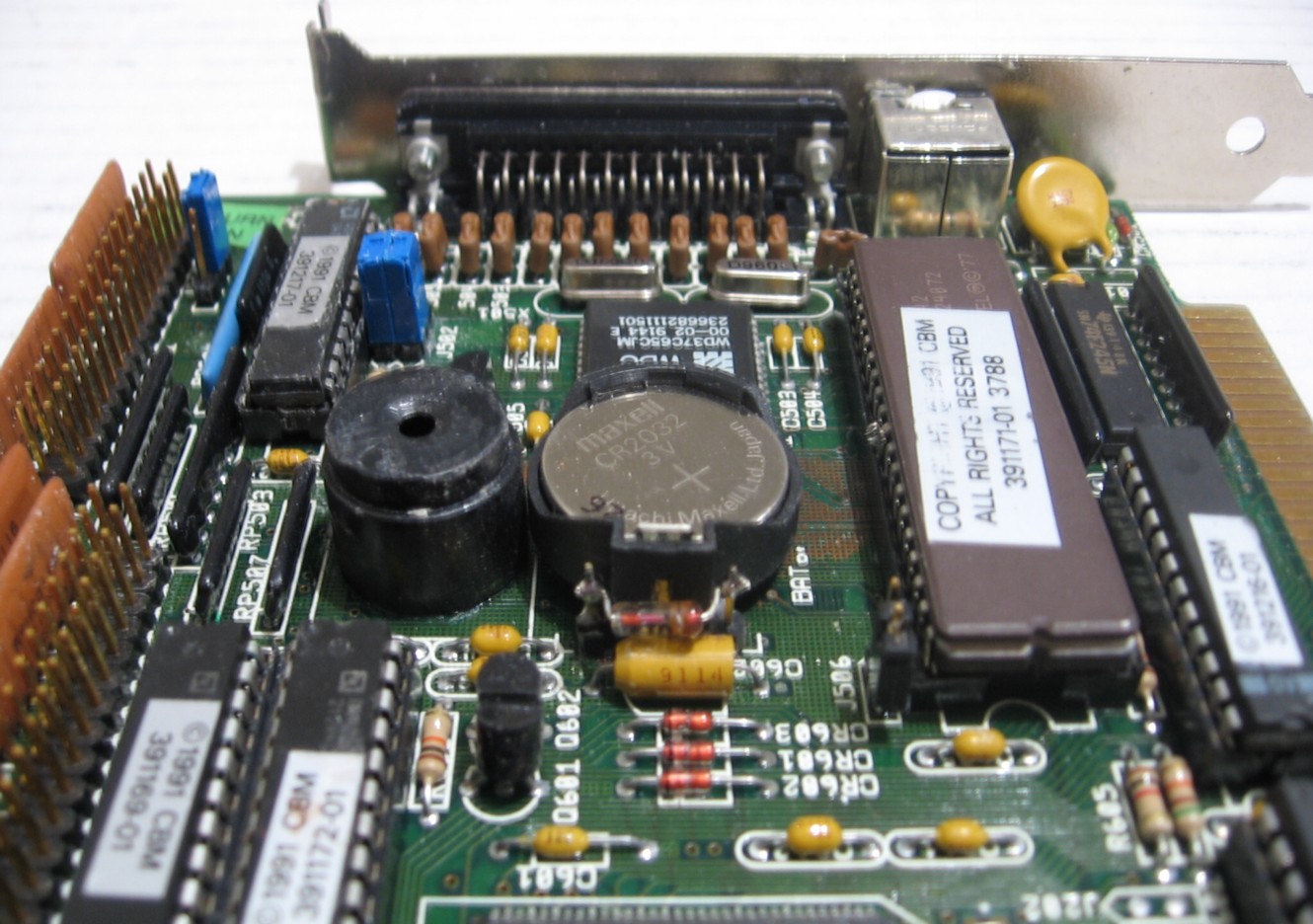

Description: This is a close up of a coin cell CMOS battery installed on the A2386SX Bridgeboard. It is protected from the charging circuit with a diode.
