| Fixing the A1200 CPU connector RF shielding | ||
 |
||
| Previous Image | Next Image | ||
|

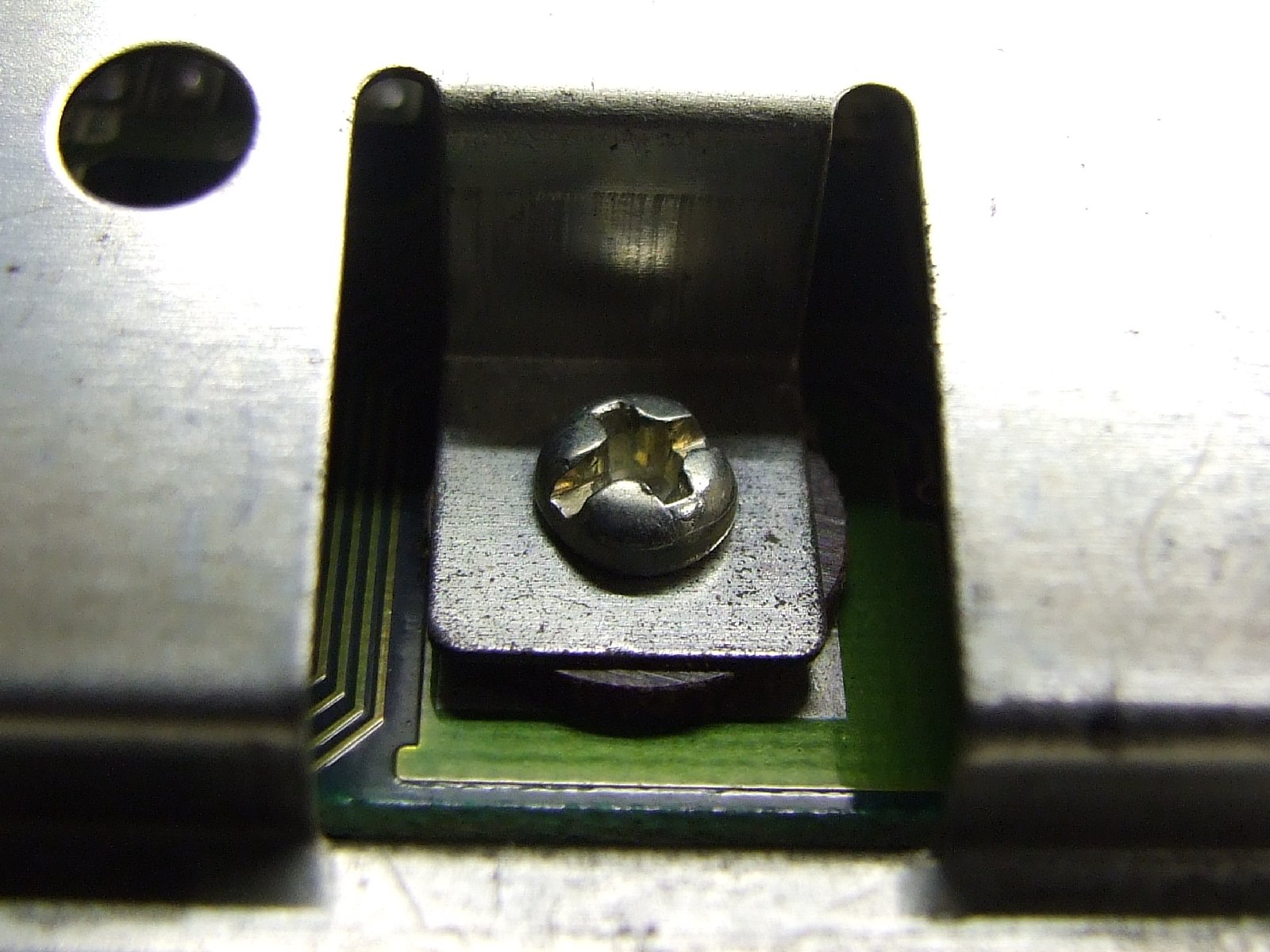

Description: Just pack out the RF shield screw nearest to the CPU slot edge connector, and hey presto, no more problems with the RF shield!
Picture Stats: Views: 1192 Filesize: 257.44kB Height: 768 Width: 1024 Posted by: Hodgkinson at December 27, 2007, 03:15:48 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Hodgkinson Posts:1080 | December 23, 2008, 02:42:03 PM Ah, but im using this A1200 in conjunction with Amateur Radio gear ;-) Shielding suddenly becomes kinda important! Hodgkinson. |
| NovaCoder Posts:1694 | December 19, 2008, 11:43:01 PM Or just take the upper shield and chuck it into the nearest bin :lol: |
| Hodgkinson Posts:1080 | February 05, 2008, 07:39:55 PM Yes, (It wouldn't matter if the washer was conductive or not). It just lifts the RF shield sufficiently to allow it to clear the (In my case) 1230IV accelerator board in the system. Makes insertion easier and *helps* to prevent short circuits from the shield to the board. |
| orange Posts:2796 | February 05, 2008, 07:24:51 AM interesting, that prevents short circuits, right? |
