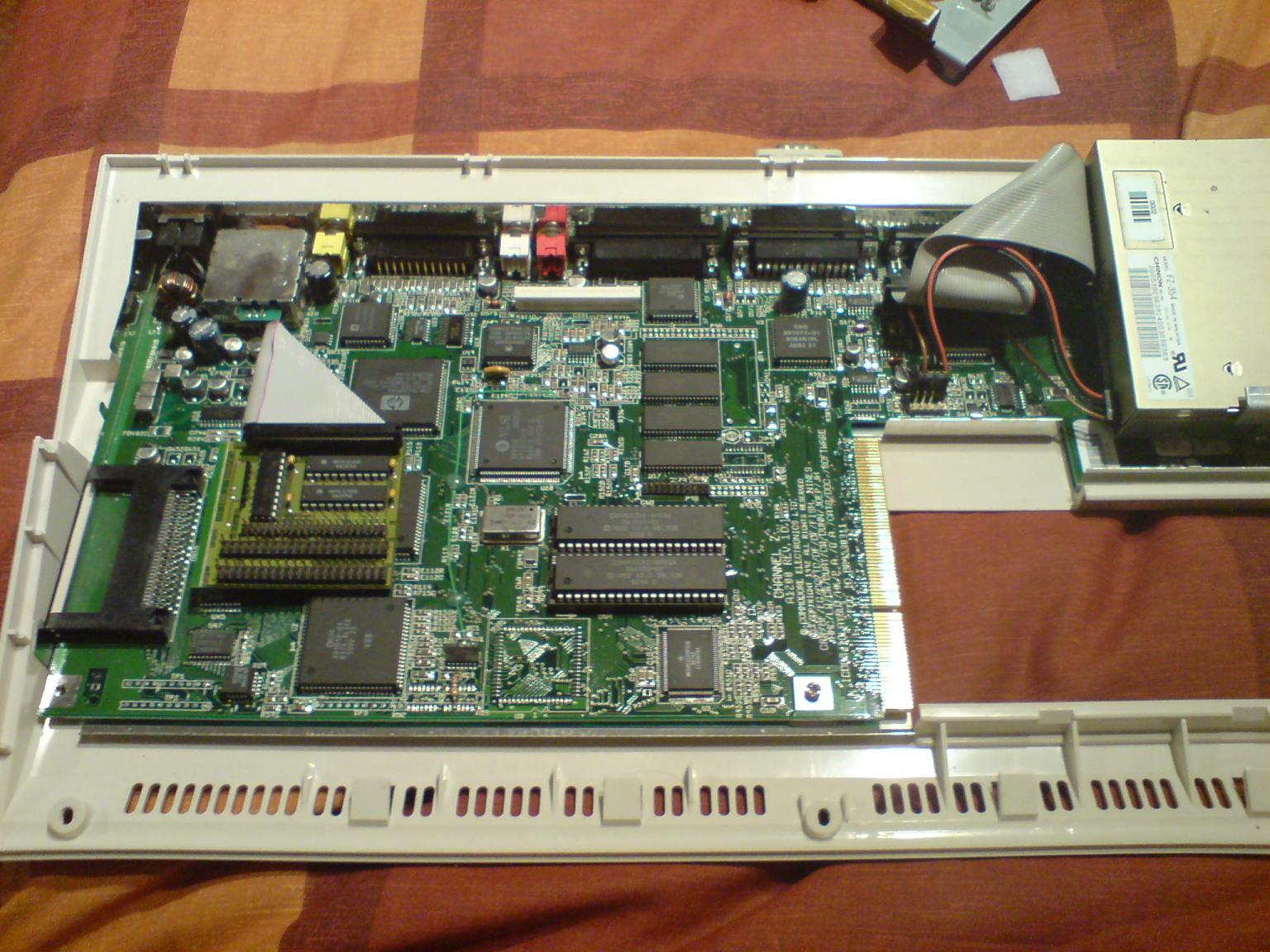

Description: Amiga A1200 with IDE-Fix 97
Picture Stats: Views: 1624 Filesize: 247.76kB Height: 768 Width: 1024 Posted by: AmigaSoft at December 12, 2007, 07:19:22 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| tokyoracer Posts:1590 | December 23, 2009, 01:49:13 PM Same here too, how odd... |
| TheGoose Posts:1458 | March 20, 2008, 01:13:52 AM Yeah, me too. A 1D1 with them on the right side. |
| rkauer Posts:3263 | February 07, 2008, 04:22:43 AM My 1200 is 1D1 revision, but the clockport is in the right place. Funny. |
| Damion Posts:3511
| December 14, 2007, 08:16:20 PM @AmigaSoft The clockport pins were installed on the "wrong" side, from the factory. (Actually, I had what I always thought was a 2B board with the same issue, but on closer inspection, DOH! It's a 1D1, just like yours.) It's somewhat trivial to pick up a header (1.0mm spacing) and solder in the pins, if you ever need to use the clockport. |
| AmigaSoft Posts:15 | December 14, 2007, 10:49:34 AM What do u mean? |
| Matt_H Posts:6412 | December 14, 2007, 01:16:15 AM Careful, that's a non-standard clockport on there. |
