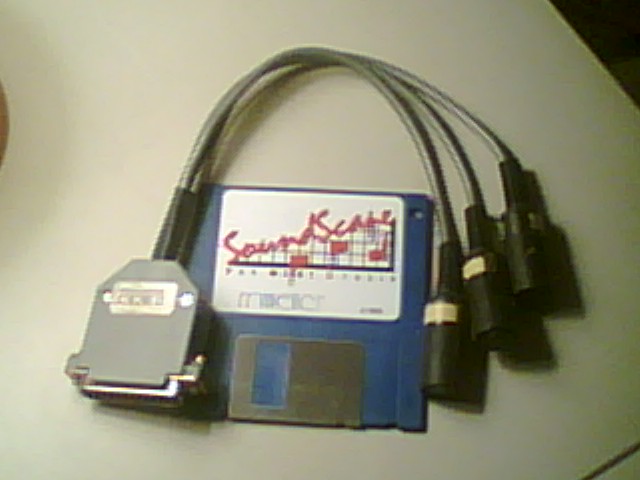

Description: Here is the updated photo, showing the program disk that goes with the connector. It is Sound Scape Pro Midi Studio by Mimetics Inc. copyright 1986 for crying out loud. Still booting! Get your Amiga 1000 hooked up to that Midi keyboard and start recording those tunes! Impress your musician friends. :-D
Picture Stats: Views: 1579 Filesize: 46.39kB Height: 768 Width: 1024 Posted by: Amiduffer at September 17, 2007, 07:04:01 AM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| rkauer Posts:3263 | July 20, 2008, 06:56:31 AM Only difference among A1k and other Amigas is the -12v(-5V) on power pin... |
| _ThEcRoW Posts:753 | May 18, 2008, 01:40:41 PM If i'm not mistaken, the A1000 had some pins on the serial port reversed, so this may be the reason that it is A1000 specific. |
| SamOS39 Posts:357 | December 20, 2007, 11:38:10 PM I actually found the schematics of a midi interface for the Amiga on (i think) Maplin electronics site. |
| Amiduffer Posts:1601 | September 21, 2007, 09:10:08 PM Help me out here guys, its been awhile since I owned the A1k. It had to do with the strange reason of the parallel and serial ports polarity being reversed (I'm not sure on this), if anyone can explain that. I you wanted to use this with another model (500, 2000, 3000 etc.), I think you have to use a gender changer. Here's a BBOAH example of another companies connector. BBOAH |
| motorollin Posts:8669 | September 21, 2007, 07:25:31 AM What makes it specifically for the A1000? It looks like a parallel or serial connector (can't tell which from the pic) so what would stop it working on any other Amiga? -- moto |
| Amiduffer Posts:1601 | September 18, 2007, 07:23:21 AM No, I never had a use for it. I've just been schleping it around with me all these years. I hope someone with An A1k can take it. |
| Jeff Posts:1410 | September 18, 2007, 01:09:01 AM That's Great! Are you still using it? You probably should back up that floppy to "adf" or something before it goes bad. |
