| Orbitel Transcoder Controller board, with 68k processor. | ||
 |
||
| Previous Image | Next Image | ||
|

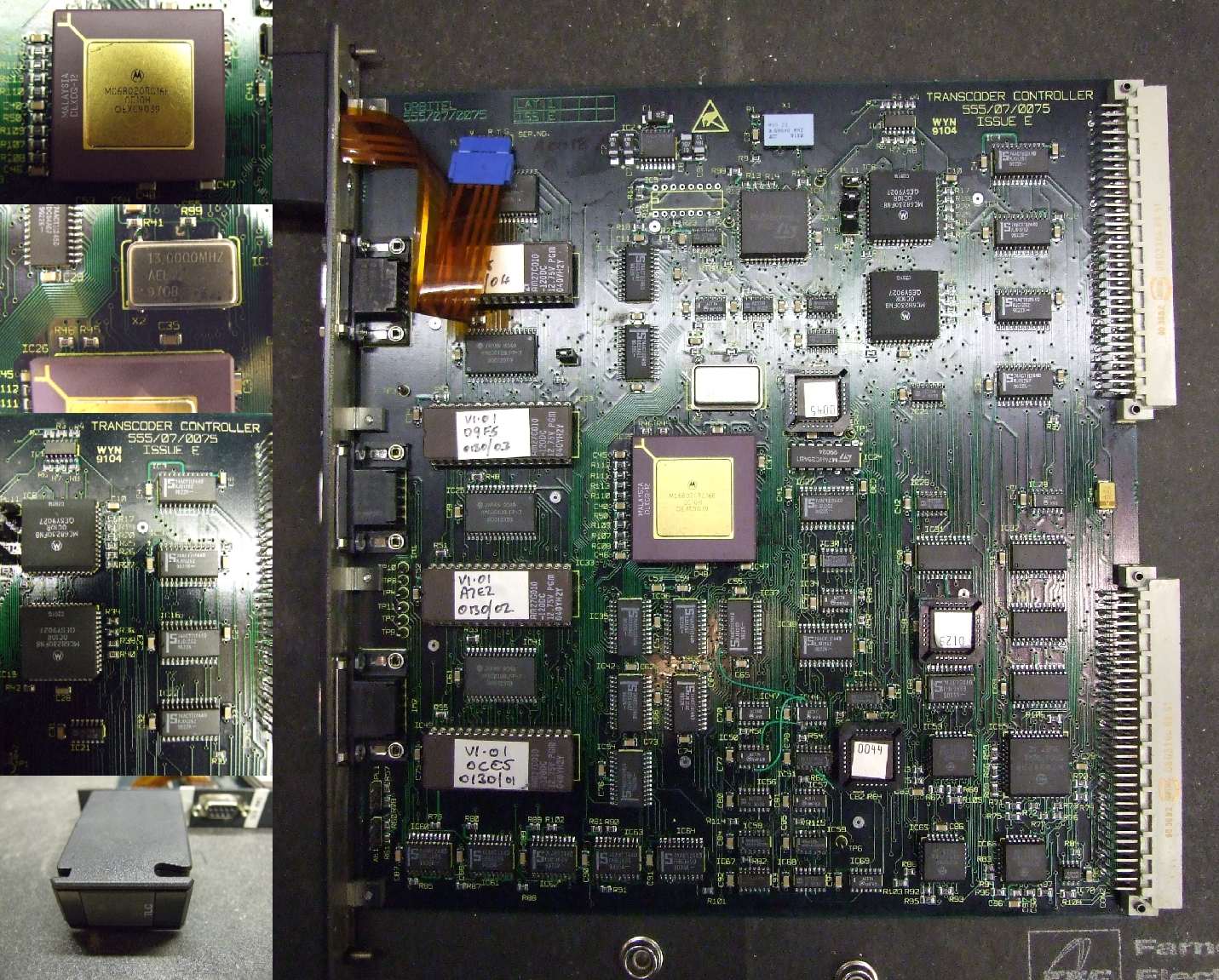

Description: An old Orbitel Transcoder Controller board using a MC68020RC16E clocked at 13Mhz. Just found it in the garage and I thought I'd let you folks here on amiga.org have a look. Theres also a pair of MC68230FN8 IC's on the board (The larger square plastic IC's). Any idea what function these chips perform? Hodgkinson. Picture Stats: Views: 1548 Filesize: 290.83kB Height: 768 Width: 1024 Posted by: Hodgkinson at August 30, 2007, 02:42:30 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Hodgkinson Posts:1080 | January 12, 2008, 09:43:41 AM :-) That's what I thought ;-) |
| rkauer Posts:3263 | January 12, 2008, 02:11:08 AM If you have no use for the board, take out the CPU and the ROMs! They are very valuable for Amiga expansions. For the "unknown" Motorola chips, did you tried http://www.freescale.com ? [edit] Nevermind. They don't have more data to the MC 68230. But I found it in Alldatasheet website! Is a parallel converter and timer. |
| Hodgkinson Posts:1080 | December 21, 2007, 04:40:37 PM My father and I reckon that these boards are probably from a GSM basestation, probably handling some digital cross-point switching, or they're digital frame-rate changers. They were part of a Racal designed island (Each basestation has its own frequency reference) communication system for GSM. Apart from that, we've got no further information on these boards. Hodgkinson. |
| SamOS39 Posts:357 | December 20, 2007, 11:41:10 PM What does it do? :-? |
| Oldsmobile_Mike Posts:6106 | August 30, 2007, 03:31:02 PM Wow, all these picture posts of your stuff you "found in the garage", pretty cool! All I have in my garage is old car parts and lawnchairs. :crazy: |
