| Use an A600 keyboard in an A1200 | ||
 |
||
| Previous Image | Next Image | ||
|

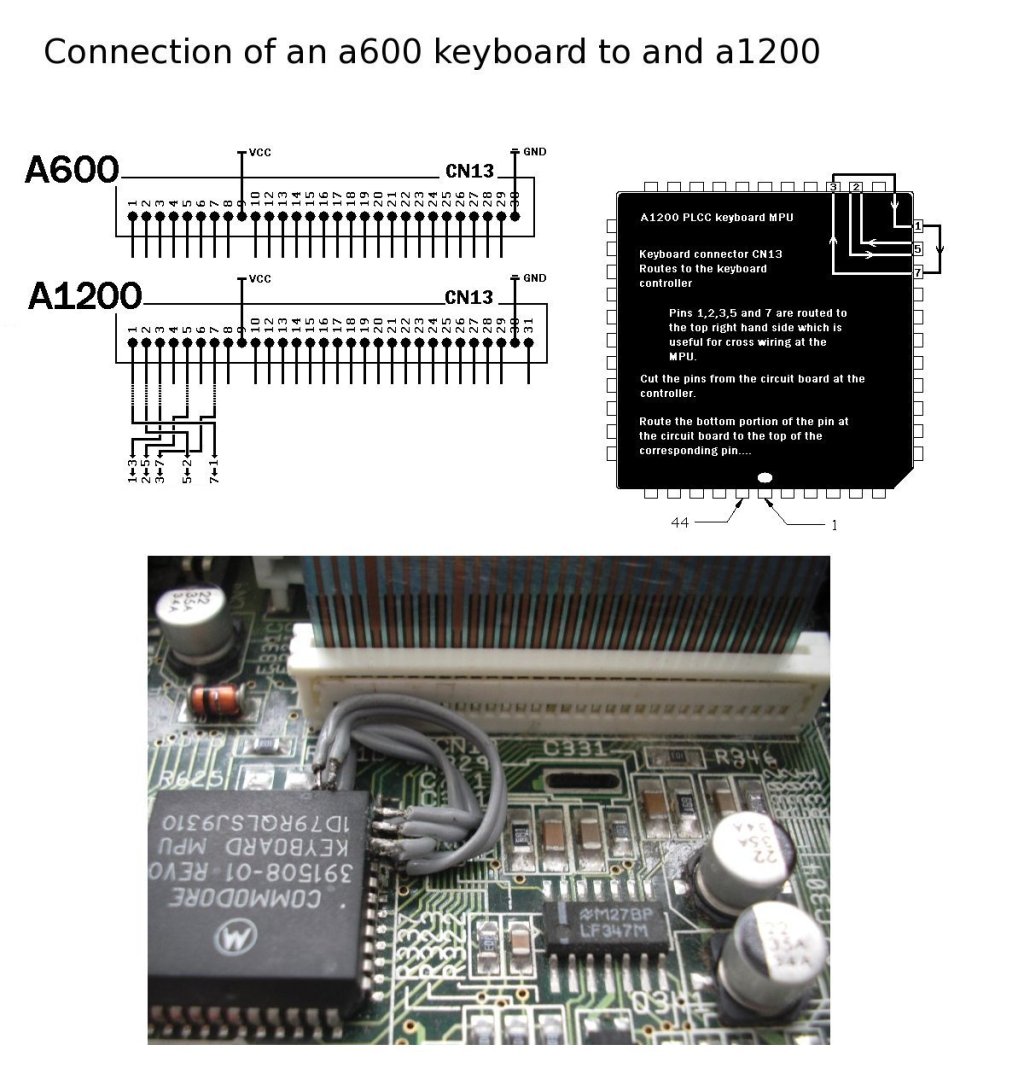

Description: You can connect an a600 keyboard to an a1200 motherboard. There are differences however..... The a600 connecter has 30 pins whereas the a1200 one has 31 pins.... The a600 keyboard tail pin1 can connect with pin1 of the a1200 connector. If you power up the a1200 then you will find that the a1200 will respond to the keyboard! Due to a difference in the matrix however, there are two problems: 1) The CAPS lock light will not function! 2) Keys pressed will not be expected - the rows are mixed around! The rows can be fixed with a soldering iron if you have a steady hand..... The keyboard tail pins at the keyboard membrane going to the a1200 keyboard controller need to be changed to the following configuration: Pin1 goes to Pin7 Pin2 goes to Pin5 Pin3 goes to Pin1 Pin5 goes to Pin2 Pin7 goes to Pin3 There are a number of ways to accomplish this including: 1) A piggy back circuit. 2) Crosswire the pins at the keyboard connector 3) Crosswire the pins at the a1200 keyboard MPU. I have included a picture of the cable cross wired at the keyboard MPU. Picture Stats: Views: 3257 Filesize: 155.53kB Height: 768 Width: 1024 Posted by: willow at August 02, 2007, 01:17:19 AM Image Linking Codes
|
||
