| A4000T Mainboard: X-ray | ||
 |
||
| Previous Image | Next Image | ||
|

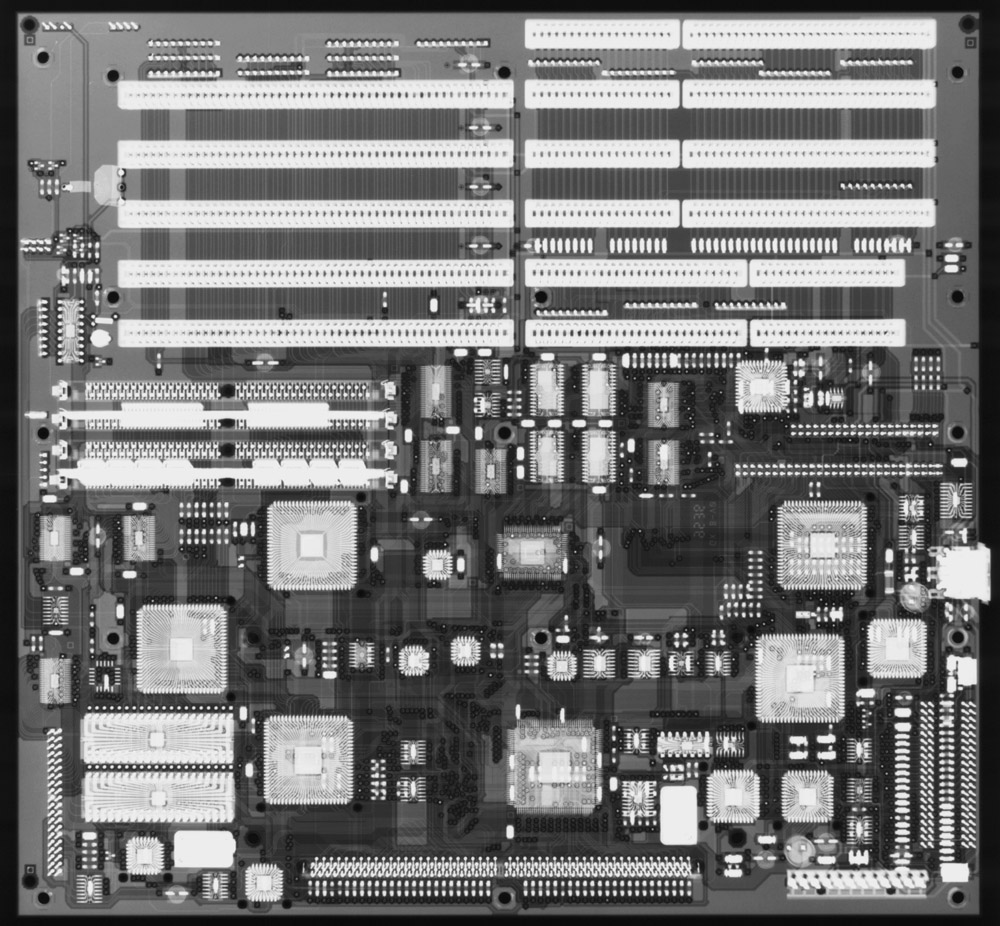

Description: This is the big one, yes. This is the original spec A4KT mainboard (before I had the CIA chips socketed). The only anomaly here is the missing coin battery (I use a battery pack, not shown). There are two 8mb SIMMS on board. I find the circuitry amazingly complex and almost beautiful :-) Picture Stats: Views: 2622 Filesize: 282.77kB Height: 768 Width: 1024 Posted by: X-ray at May 27, 2007, 08:12:20 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| derringer3 Posts:368 | May 28, 2007, 08:46:12 AM Dude this is awesome! |
| Guest | May 28, 2007, 08:45:40 AM This also very cool... Soon we will get a new picture database for amiga stuff X-ray version  regular pictures of hardware are for amateurs A1200? would make a nice widescreen backdrop. Isnt there any risk of explosion when u x-ray? Batteries? Is it possible to X-ray a system while its plugged and runing.? If Yes, would that look different? haaaaa I got plenty questions... interesting subject. |
| X-ray Posts:4370
| May 27, 2007, 10:03:20 PM The daughter modules were removed before X-raying. They would have ruined the picture, I think. edit: I forgot one thing...the one CIA chip is not original. It was replaced (surface mounted) in the late 90s. |
