| MP3@64 on KickFlashOS4 in A4000D | ||
 |
||
| Previous Image | Next Image | ||
|

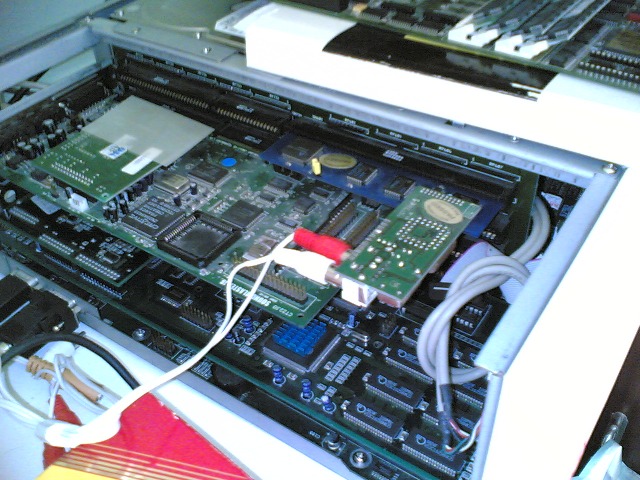

Description: just connected the mp3@64 on my kickflash, easy installation, excellent output quality and fast response... it is great! it also has normal cd-rom-type audio out... Picture Stats: Views: 2083 Filesize: 123.06kB Height: 768 Width: 1024 Posted by: keropi at May 24, 2007, 05:02:30 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| leirbag28 Posts:1793
| February 05, 2008, 06:27:59 PM @keropi or @AmigaKit Will it work in a Plain A600 with clockport adaptor? and how well will it work? I have a Special Clockport for the A600 made by Jens (Individual Computers) I know the MASPlayer works ok with not too much CPU load. |
| keropi Posts:2466 | May 25, 2007, 03:20:51 PM @Mr no there is no volume control for now, just hook it on the pIV cdrom input :lol: also it comes with no cable... the cable must be female-male to be used with mp3@64 congrats Coolit! :-D |
| Coolit Posts:267
| May 25, 2007, 01:33:48 PM Thats great news, I ordered one from Amigakit and a 9cm clockport extension ribbon:) I'm going to hook it up internally to the SB128 that I have in my mediator using the aux_in, hopefully it should work really well! Thanks for posting about this keropi! I'll let you know how well it works on an A1200. |
| MrZammler Posts:720 | May 25, 2007, 01:27:21 PM Plus, does it come with any cable? I think that if I install this on my x-surf it will stick far out on the side, maybe preventing the case from closing... ? |
| MrZammler Posts:720 | May 25, 2007, 01:24:24 PM Keropi, I think it lacks volume control? |
| keropi Posts:2466 | May 25, 2007, 11:35:28 AM just tested with a VBR320 kbps mp3, it played perfect! @moto: yes, there must be 3-4 pins near the paula area, I remember I got an A4000D from a german guy, that had the cdrom audio connected there.... |
| motorollin Posts:8669 | May 25, 2007, 06:29:25 AM Does the A4000 have an input for CD Audio in its motherboard? If so I might think about getting one of these. -- moto |
| Coolit Posts:267
| May 24, 2007, 11:49:02 PM Great Thanks  I have a 060 with 198mb of fast ram ;-) |
| keropi Posts:2466 | May 24, 2007, 11:29:08 PM sound quality is great, it uses a 24bit/96khz DAC .... I don't know how it will do on the A1200 clockport, if u have 040/060 u would be OK I think... I tested in zorro clickport with a csppc 060 ... u also need a clockport riser to plug the cable, the cable alone will not fit easy with the fastata in place... get a riser too , and use max 10cm for clockport extension cable... |
| Coolit Posts:267
| May 24, 2007, 11:23:04 PM Hi, yeah one of these FAST ATA I think it would fit with a ribbon cable and have the MP3@64 in a remote location in my case (D-Box tower). I've messaged Amigakit anyway:) So your impressed with it and the sound quality is good with little CPU load? :-o |
| keropi Posts:2466 | May 24, 2007, 11:11:23 PM fastata eh? u would need a clockport extension cable for sure, the clockport riser alone is not that good, it would touch the mediator... |
| Coolit Posts:267
| May 24, 2007, 10:51:37 PM This seems pretty cool! I'd be interested in one of these if it will fit my A1200 clock port with a Mediator and FAST ATA attached. |
| keropi Posts:2466 | May 24, 2007, 10:43:15 PM naturally I got this from amigakit.com , like all the current commercial stuff I want :-D |
| amigakit Posts:3666 | May 24, 2007, 08:39:27 PM Further product details are available here: http://amigakit.leamancomputing.com/catalog/product_info.php?products_id=493 |
| keropi Posts:2466 | May 24, 2007, 07:55:57 PM it must connect to the a1200 clockport, the driver readme says: Requirements ~~~~~~~~~~~~ You will need the MP3@64 Player, connected to a clockport of the following Zorro cards (or internal clockports of your A1200): - Highway USB - Unity Prototype - X-Surf - ISDN-Surfer - VarIO - Buddha flash - Kickflash it uses only little cpu load, just to transfer data to clockport... did not test VBR, I will very soon, for now I removed it from the home amiga, no space, subway more usefull! I will test 2morrow on the work amiga! it works with amplifier, Frogger, MPEGMovie , any soft that lets u use an external device as decoder... did not succeed to maka amigaamp use it though :-( edit: every now and then, there can be some 1/2sec delay, that is normal due to the driver... no big deal though! |
| X-ray Posts:4370
| May 24, 2007, 07:52:12 PM And does it mean no CPU load? Does it play VBR mp3s? |
| DBAlex Posts:304 | May 24, 2007, 07:28:58 PM Cool! Will this connect to a standard A1200 clockport? Does it work with AmigaAmp etc? :-D |
