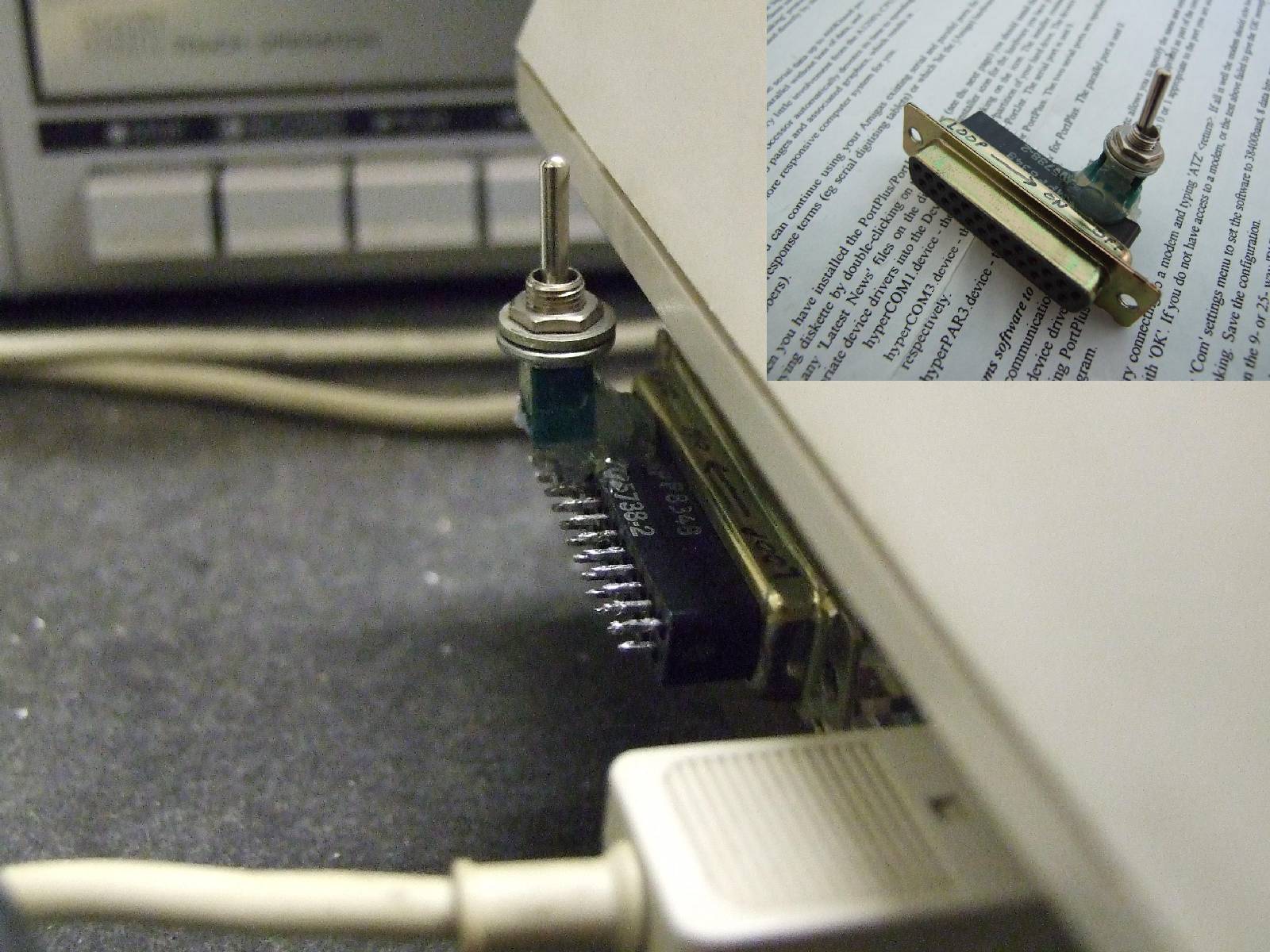

Description: Just something I knocked together to test my new A1200 HyperCOM MK1 / PortJunior serial interface. A switch has been connected (As per the instructions) between pins 2 and 3 of the PortJnr serial port. When the switch is closed, data is looped directly back to the A1200. Test software used: Term 4.7 '020+ Term settings (Serial menu): 38400 Baud 8 Data bits No parity 1 Stop bit No handshaking Local echo Device: HyperCOM1.device, unit 0 All other settings left as defaults. Saved directly from Term: SWITCH OPEN SSWWIITTCCHH CCLLOOSSEEDD --- Notice the difference? Picture Stats: Views: 1231 Filesize: 230.32kB Height: 768 Width: 1024 Posted by: Hodgkinson at May 20, 2007, 07:26:40 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Hodgkinson Posts:1080 | August 03, 2007, 03:24:34 PM :-D Nope. Every character just appered duplicated with the switch closed, and individually with the switch open. Hodgkinson. |
| weirdami Posts:3776 | August 01, 2007, 08:35:08 AM Did the font change? ;-) |
