Zorro cards A4000D tower
Zorro cards A4000D tower
Previous Image | Next Image

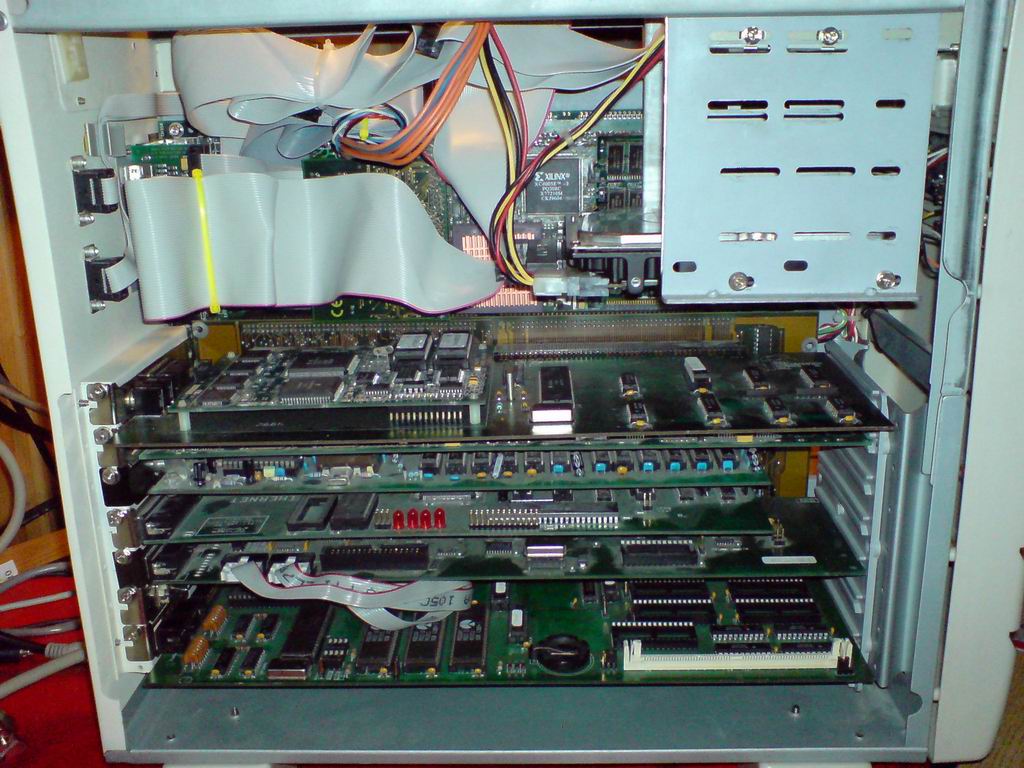

Description: A pic of dusty zorro cards in a A4000D tower.

Need a bit cleaning?




Photo taken by mobile phone
BuzzBrain
Picture Stats:
Views: 2332
Filesize: 143.75kB
Height: 768 Width: 1024
Posted by: BuzzBrain at March 19, 2007, 09:13:51 AM

Image Linking Codes
BB Code
0 Members and 1 Guest are viewing this picture.

Comments (12)

darksun9210
Posts:1319
September 11, 2008, 09:12:27 PM
iirc, miniGL could run on the virge, the only problem was that it only had 3Mb of usable 3D memory, the other 1Mb was dedicated as framebuffer. so that ment that anything bigger (re- pretty much everything) got swapped back and forth to fastram.
plus there was a GL version of quake.
ok, so at big resolutions it was a bit of a slideshow, but it was a hardware 3D lit, bilinear filtered slideshow! :lol:
cv643d
Posts:1197
July 23, 2007, 11:11:14 PM
Well the Descent port was relased in a special Virgie version  :-)
justthatgood
Posts:579
April 06, 2007, 12:30:41 PM
I just like the whole setup. Something about a very busy tower crammed full of cards gets me all.... :-o

Anyways, nice.
Tempest
Posts:290
March 29, 2007, 07:36:27 PM
Quote
so this MIDI card, is just an interface for the PC standar "waveblaster" connector and a midi interface... what daughterboard is mounted?


It's a complete synthesizer (E-mu Proteus) on a zorro board. I have one in my a3000D and it's a very nice card, sounds good. Works well with Bars n Pipes, X-Music and Superjam.

mini-review
justthatgood
Posts:579
March 26, 2007, 12:31:35 PM
Bleh, there isn't anything wrong with a CV64. How much software actually made any good use of the "3D" part of that card ?
keropi
Posts:2466
March 21, 2007, 01:22:34 PM
so this MIDI card, is just an interface for the PC standar "waveblaster" connector and a midi interface... what daughterboard is mounted?
BuzzBrain
Posts:133
March 20, 2007, 02:13:00 PM
Hi :)


Yes the second card is a Cybervision 64.
And the last card is a Emplant :)

Then we have 2 card left :)

Well here they come:

From top:

One Stop Music Shop (midi sound card)
Cybervision 64.
VLab Motion
Ariadne
GVP I/O Extender
Emplant.


And it have a cyberstorm MKII board with 060 50MHz and SCSI module.
128MB ram
18GB Segate SCSI disk
Ultraplex SCSI cd-rom
kick 3.1
OS 3.9

It's my zorro a4000 :)

BuzzBrain
cv643d
Posts:1197
March 19, 2007, 10:21:50 PM
I guess its a Merlin?  :-)  (damn, its a CV64) -1 point  :cry:

What is the top card?

Card at the bottom is an Emplant!
Amigaz
Posts:1959
March 19, 2007, 08:10:50 PM
hmm...a Cybervision 64?  ;-)
BuzzBrain
Posts:133
March 19, 2007, 07:42:52 PM
Hi.

Yes the fourth card is A Ariadne network card.
the fifth is a GVP I/O Extender card.

But the second from top is not a picasso IV!!
In my dreams it is..but not in real world.

I give you a hint, is made in germany.
And have 4mb ram.

And still 3 card left to guess on ;)

BuzzBrain
cv643d
Posts:1197
March 19, 2007, 06:16:19 PM
Ahhh.. nothing more badass than an Amiga tower full of Zorro cards!  :-D

Lets play guess the cards!

I suspect top fourth is an ethernet board, probably an Ariadne.

Fifth from the top is some kind of I/O card.

Is the second from the top a Picasso IV? *guessing*
Amigaz
Posts:1959
March 19, 2007, 03:50:54 PM
That's one stuffed Micronik ZIII board..

mm...CS MKII with the CyberSCSI module
