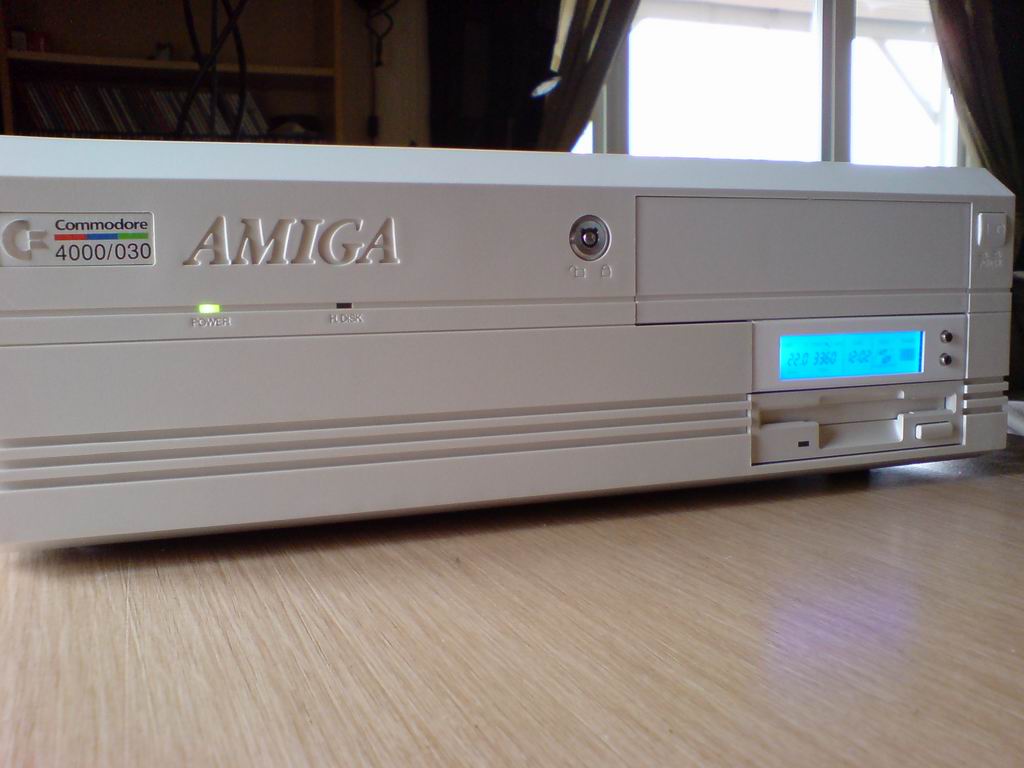

My new A4000D
My new A4000D
Previous Image | Next Image
Description: Spec:

A4000 Desktop, rev B hovedkort
Phase 5 Cyberstorm PPC 233 MHz, 68060 60 MHz
128 MB Fastmem
Grex PCI
Voodoo3 3000 GfxCard
10mbit NetCard
Soundblaster Live SoundCard
Kickflash-Card
Fan control unit
KickStart 3.1
OS 3.9 and MorphOS.

Custom build by PaSha
"Power mod" "Air flow mod"

Thanks to Pasha who sold me his precious Item  :-D

Sorry for bad pic.
Done with my mobile phone.

BuzzBrain
Picture Stats:
Views: 2630
Filesize: 68.25kB
Height: 768 Width: 1024
Posted by: BuzzBrain at March 16, 2007, 11:47:26 AM

Image Linking Codes
BB Code
0 Members and 1 Guest are viewing this picture.

Comments (20)

darksun9210
Posts:1319
April 03, 2008, 02:43:32 PM
very very nice.  :-)

very clean and new looking. very pretty.

awesome internals too!  :-o  thats pretty much my dream desktop machine right there.  :-D

i hope it'll give you many hours of happy amiga'ing  :-)
rkauer
Posts:3263
November 10, 2007, 04:20:14 AM
This is the most clear, "brand new"-like A4000D I ever seen!

 Congratulations!:cheers:
Framiga
Posts:4096
April 07, 2007, 07:28:55 PM
ed
justthatgood
Posts:579
April 06, 2007, 12:33:25 PM
If only I had more toys to go with my Amiga.
keropi
Posts:2466
March 21, 2007, 01:36:22 PM
on my g-rex4000D setup, I use a small IDE Lite-On 52x CDR with an Acard7720UW converter... also I use a laptop 40GB 2,5" IDE drive again with another acard... I have freed up enough space with those, and use the expansion port to mount a "multimedia and design" monitor switch.
If you are interested PM me, so I can give you the cgx4 patch to control the switch, so it becomes FULLY automatic....
BuzzBrain
Posts:133
March 20, 2007, 03:03:26 PM
Hi.

I have tested this system with a Watt meter, to  measure the power consumption.

Only tested the system without montor.
This is just a test, not a research :)


Idle, this system use 119W
Load (with disk use)  124W



The A4000D Tower I have posted:
http://www.amiga.org/gallery/index.php?n=1965=12

use:
Idle, this system use 109W
Load (with disk use)  116W


The load test is only sysspeed disk test
on both amiga's.

I think it will be more with more load.
Is just at simple test.

I have a escom A4000T with mediator and voodoo 5500 and stuff. Soon gona test it, to compare.


BuzzBrain
x56h34
Posts:2921
March 20, 2007, 02:42:11 PM
@PaSha:

That's exactly the reason why I didn't install an internal optical drive in my A4000D-Grex setup. I connect it externally (through an external SCSI connector, of course) in very rare occasions when it's needed.

I also think that relieving your A4000D PSU of extra load is also a smart thing to do as CSPPC + Grex + PCI cards already eat a lot of internal power on their own, so not having an additional device inside is good. ;-)
PaSha
Posts:537
March 19, 2007, 03:04:34 PM
Why is there no CD-ROM drive?

As many A4000 owners know, there is just barely enough space for a CD-ROM drive in there...
I chose to have some extra space for airflow instead of a rarely used CD-ROM drive. On one of the other pictures you can see that there's an external SCSI connector, providing the means to hook up an external SCSI CD-ROM drive when necessary.
Colani1200
Posts:707
March 19, 2007, 10:39:49 AM
Beautiful system. But... no CD-ROM/burner?
PaSha
Posts:537
March 18, 2007, 05:09:46 PM
:-) The harddrive is 'only' a 7200 rpm Quantum Atlas IV (less heat & noise). Unless you've swapped it, that is.

The main purpose of the LCD display tingy, is to slow the fans down in order to reduce the noise, but still maintain safe temperatures on the inside.

Anyway, cheers for posting these pictures. I never got around to doing it myself.
:pint:
BuzzBrain
Posts:133
March 18, 2007, 11:19:21 AM
"Poster: Bazzaq  Posted: 2007/3/16 21:40:26

Thats a kickass system.. I bet that cost a bit???"

Yes I payed good money for this rig.
But I think is worth it, As for me this
Amiga has more soul then a "modern PC"


"da9000  Posted 2007/3/17 10:31 Updated 2007/3/17 Re: My new A4000D

Nice rig! What does the LCD show?"

The LCD shows the temp on PPC604 cpu, 68060 cpu and inside cabin. And give me data about the rpm on both cpu fan's and a fan inside cabin.
It spin's up the fans if the temp increase. It's even have a alarm. If temp raise to high, or the fan's stop.

It nice, as I have a 18GB 10 000rpm SCSI disk inside too who get hot.
I think this fan control unit give me more hours with happy computing as it hold my tight a4000D case cooled.
And as it have a mission. It's better to have it there,even if it's crash a bit with the "orginal Amiga look"

Thanks for all comments :)

BuzzBrain
da9000
Posts:922
March 17, 2007, 10:55:58 PM
Thanks, but what club am I joining? :)
derringer3
Posts:368
March 17, 2007, 07:48:26 PM
Welcome to the Club
da9000
Posts:922
March 17, 2007, 09:31:11 AM
Nice rig!

What does the LCD show?
Framiga
Posts:4096
March 16, 2007, 09:01:33 PM
hi class mod, indeed! very good :-)
Bazzaq
Posts:363
March 16, 2007, 08:40:26 PM
Thats a kickass system.. I bet that cost a bit???
keropi
Posts:2466
March 16, 2007, 07:02:52 PM
now all it needs is an Arxon Scandoubler, a multimedia&design monitor switch and the patches to make it automatic.
ah, and get rid of that monitoring thingie, plug a subway to the kickflash and put in the 3,5" bay a usb multimedia card reader...  :lol:
then our 4000D's would be like sisters!
McVenco
Posts:1428
March 16, 2007, 06:02:25 PM
"Sorry for bad pic.
Done with my mobile phone."

You call that bad? Heck, my camera does worse than that :lol:

But a very lovely machine you've got there, although that little blue screen isn't entirely up to my taste...
dandelion
Posts:246
March 16, 2007, 05:29:54 PM
The nicest example of an A4000D i've ever seen, ever. Beautiful. I'm going to keep all the pictures as an example of just how perfect an A4000 can become with careful, considerate modding.
Ideal
Posts:82
March 16, 2007, 05:09:58 PM
Lovely  :love:
