| mounting plate A1200 | ||
 |
||
| Previous Image | Next Image | ||
|

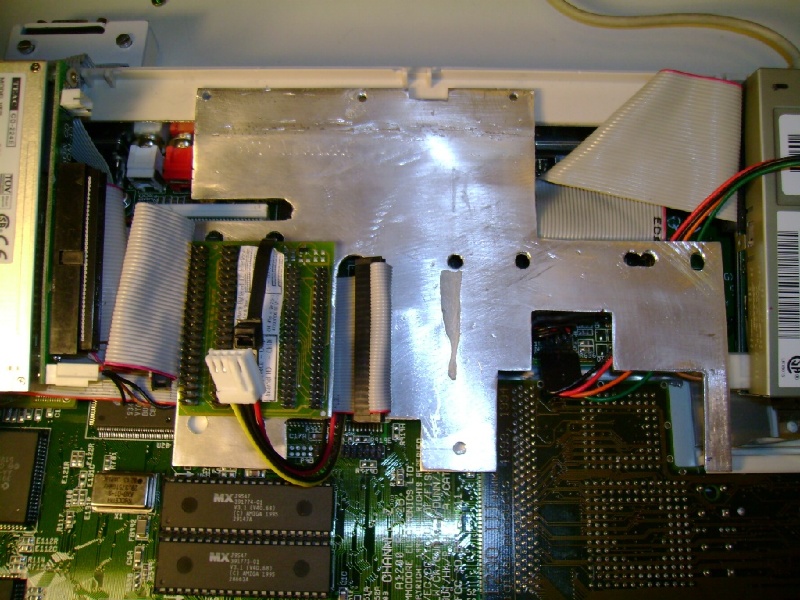

Description: Here some more pictures off my 1200. This is the plate used to give the harddisk another home and to mount the amigakit 4*EIDE splitter. This time without the harddisk. Underneath the plate I put adhesive rubber feets for support. The far right off the plate rests very nicely on the plastic edge besides the turbocard. The plate is secured with two screws on the top. Picture Stats: Views: 1969 Filesize: 207.23kB Height: 768 Width: 1024 Posted by: amiga4001 at February 21, 2007, 08:25:06 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| rkauer Posts:3263 | April 21, 2008, 09:08:30 PM [pedantic mode] And I thinking aluminium was a metal...:roll: [/pedantic mode] |
| weirdami Posts:3776 | November 01, 2007, 06:58:28 AM metal vs. alumimium? |
| Starke Posts:316
| February 22, 2007, 10:41:44 AM mmmmmmmmmm, But aluminium is easier to work with Cheers!! 8-) 8-) Thanks for info. |
| amiga4001 Posts:537
| February 22, 2007, 06:44:47 AM It is a homemade produce. Better should have been a metal plate instead off aluminium. It is too soft for the selftapping screws. |
| Starke Posts:316
| February 22, 2007, 05:02:34 AM So you made the plate yourself, or you retrieved the product like that from Amiga kit and you just had to install it?? Cheers!! 8-) 8-) |
