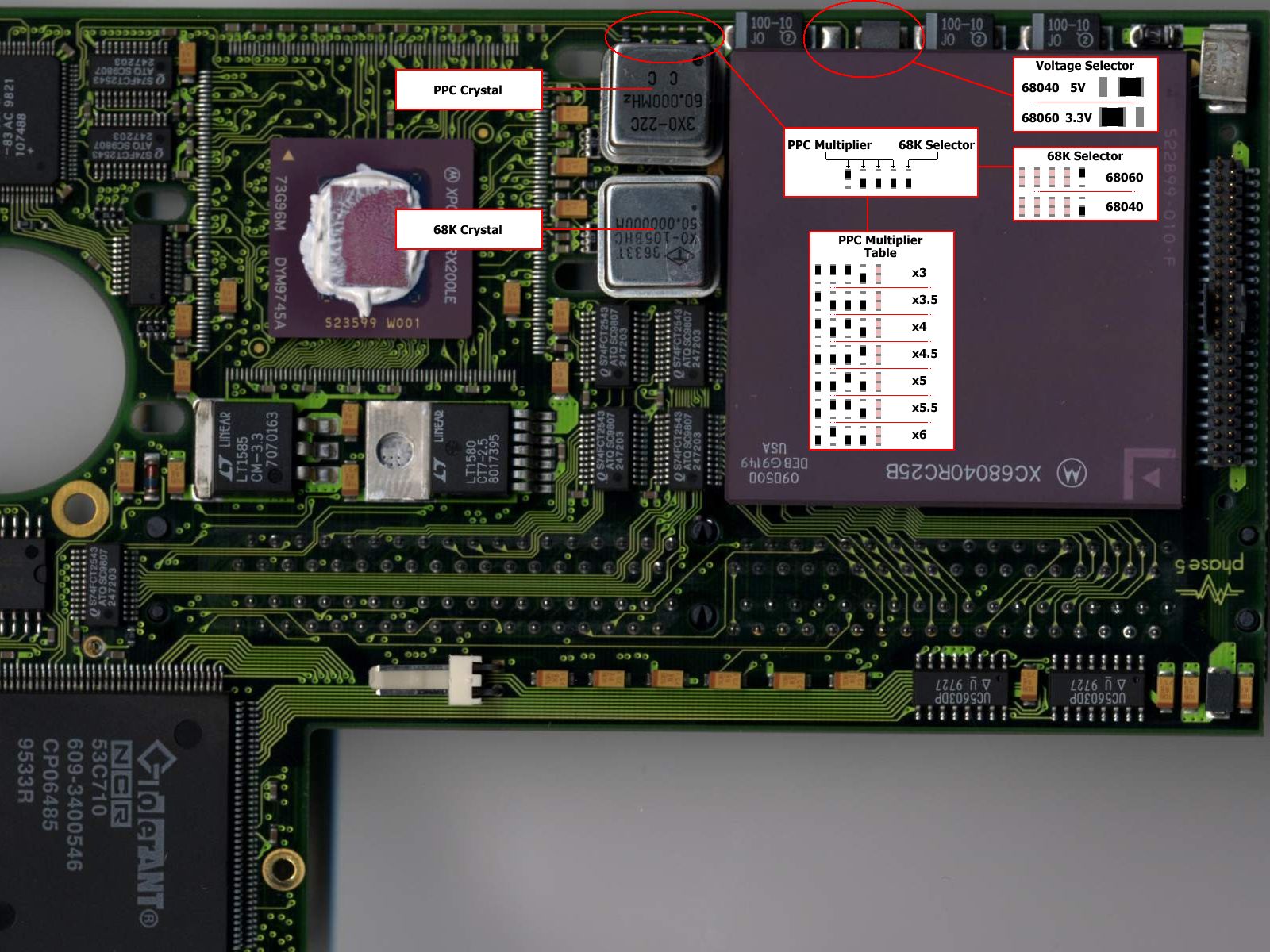

Description: This picture is uploaded to help people who wish to replace the 68K CPU or overclock their BlizzardPPC. If replacing the 68K CPU don't forget to flash the card with Flash-300399.lha from Aminet... and yes the picture is originaly from BBoAH.
Picture Stats: Views: 2996 Filesize: 284.28kB Height: 768 Width: 1024 Posted by: Brian at February 17, 2007, 02:14:47 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Brian Posts:1604 | February 19, 2007, 06:06:20 AM Oriented the jumpers to fit the boards orientation. Could of cause turn the card but lookes better like this. If you know the jumpers orientation then this image is probably not of much enlightment anyway.  |
| Piru Posts:6946 | February 18, 2007, 11:54:48 PM Well, other than displaying the jumpers upside down it looks ok. Typically they're displayed like this: codes.gif This orientation also directly maps to bits specified for 603 PLL multipliers. |
