A4000T USB (Pic 2)
A4000T USB (Pic 2)
Previous Image | Next Image

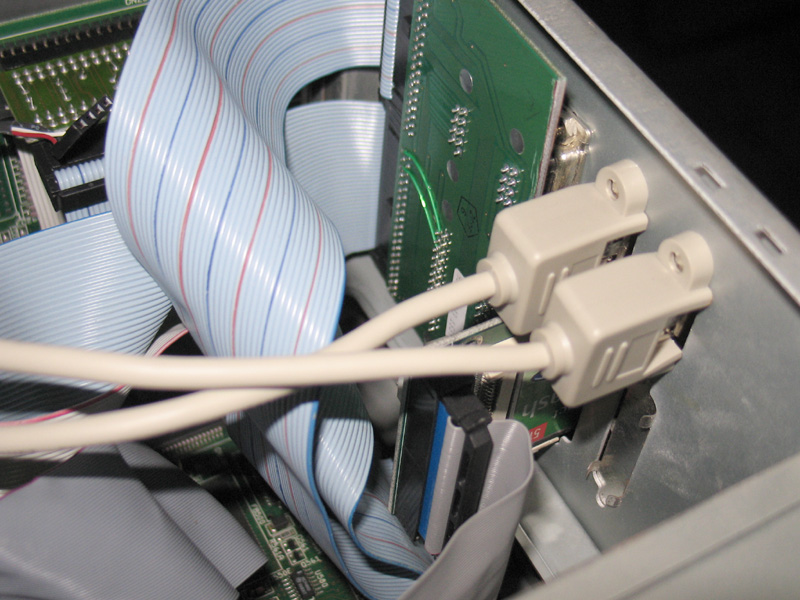

Description: Here you can see that I had to cut my ports module so that all the cut-outs at the back of the A4000T could be accessed. So I cut the SCSI terminator off the ports module. It can still be used (it is not electrically connected to the ports module).
I used the two smaller cut-outs for the USB connectors and one of the larger ones will become my Compact Flash port.
Picture Stats:
Views: 1377
Filesize: 185.18kB
Height: 768 Width: 1024
Posted by: X-ray at February 03, 2007, 02:15:09 PM
