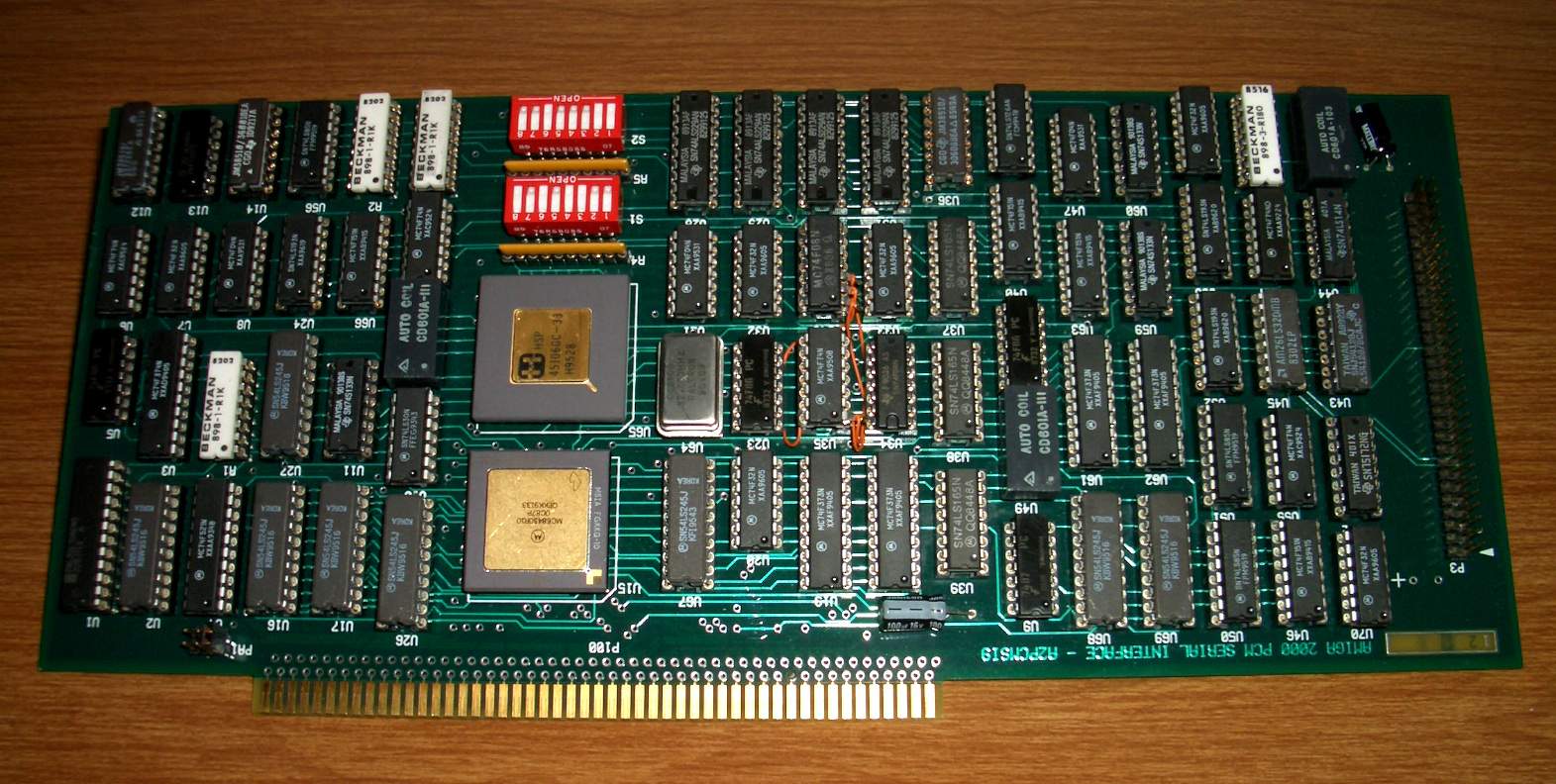

Description: Unknown Amiga Hardware Part III I have no idea what this is, only I think is a Serial card. :-? Picture Stats: Views: 1529 Filesize: 209.28kB Height: 768 Width: 1024 Posted by: hakker at December 20, 2006, 06:06:19 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Tension Posts:2034 | March 26, 2009, 01:29:38 AM That`s an Amiga 2000 PCM Serial Interface. :lol: |
| scottgfx Posts:4
| July 21, 2008, 06:19:59 AM The main chip on the card is a digital signal processor. HSP45106 is a Harris chip. They are based in Melbourne Florida, not too far from Cape Canaveral, where they launch the space shuttle. |
| darksun9210 Posts:1319 | May 14, 2008, 11:02:18 AM looks like one of those wierd 8 port serial cards. as for the cpu slot issue, the cpu slot, is pretty much the same as a zorro2 slot, and the same as an A500/A1000 edge connector. wouldn't be too difficult to hand wire an adapter using some butchered ISA slot edge connectors. maybe it came from a case that had such an adapter? who knows. just my 2pence worth :-) |
| AMC258 Posts:877
| December 16, 2007, 04:10:04 PM PCM?? Why so many pins?? Why does it go in the accelerator slot if it's just serial?? |
| bloodline Posts:12113 | May 03, 2007, 10:22:24 PM The Silkscreen of "Serial Card" somewhat of a clue... :-P |
| a1200 Posts:516 | April 15, 2007, 05:49:21 PM There is a Motorola MC68450 DMA chip on there... |
