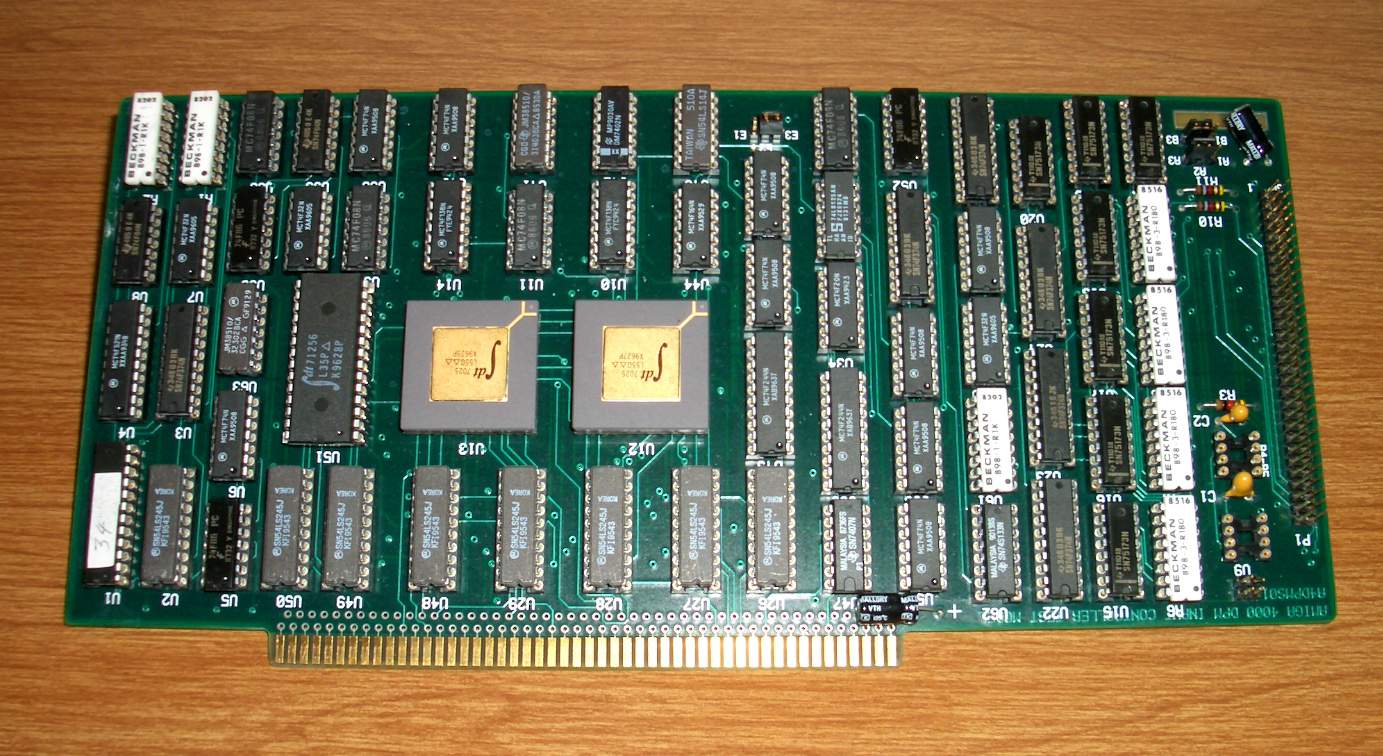

Description: Unknown Amiga Hardware Part II I have no idea what this is, only I think is a Serial card. :-? Picture Stats: Views: 1660 Filesize: 188.88kB Height: 768 Width: 1024 Posted by: hakker at December 20, 2006, 06:04:55 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| scottgfx Posts:4
| July 21, 2008, 06:13:07 AM Take a look at this link: http://www.stud.uni-hannover.de/~mheine/AEcastro.html Amiga computers used at NASA for telemetry. A clue perhaps? |
| scottgfx Posts:4
| July 21, 2008, 06:04:58 AM The large black DIP chip to the left of the gold PGA chips is a Static memory. The card appears to be a memory controller. |
| scottgfx Posts:4
| July 21, 2008, 06:02:40 AM Here's my best guess: The cards are part of some kind of telemetry system. I looked up the stats on the two large chips. They are Dual Ported Ram chips. Hence the name DPM on the card. The other card is labeled PCM, so I'm guessing that these things get connected together to make a system of some kind. Pulse Code Modulation is used in telemetry. Like I said, my best guess.  Info on the chips: http://www.idt.com/?genID=7026 |
| boing4000 Posts:222
| June 25, 2008, 06:36:49 PM In this view bottom right of the PCB is printed "AMIGA 4000 DPM IN...". It seems to be a DSP card or something. The 2 big chips may me DSP's. The 71256 DIP could be (S)RAM. I've also never seen such a card before. |
| boing4000 Posts:222
| June 25, 2008, 06:34:57 PM . |
