A4KT Components (13) Case Information Sheet
A4KT Components (13) Case Information Sheet
Previous Image | Next Image

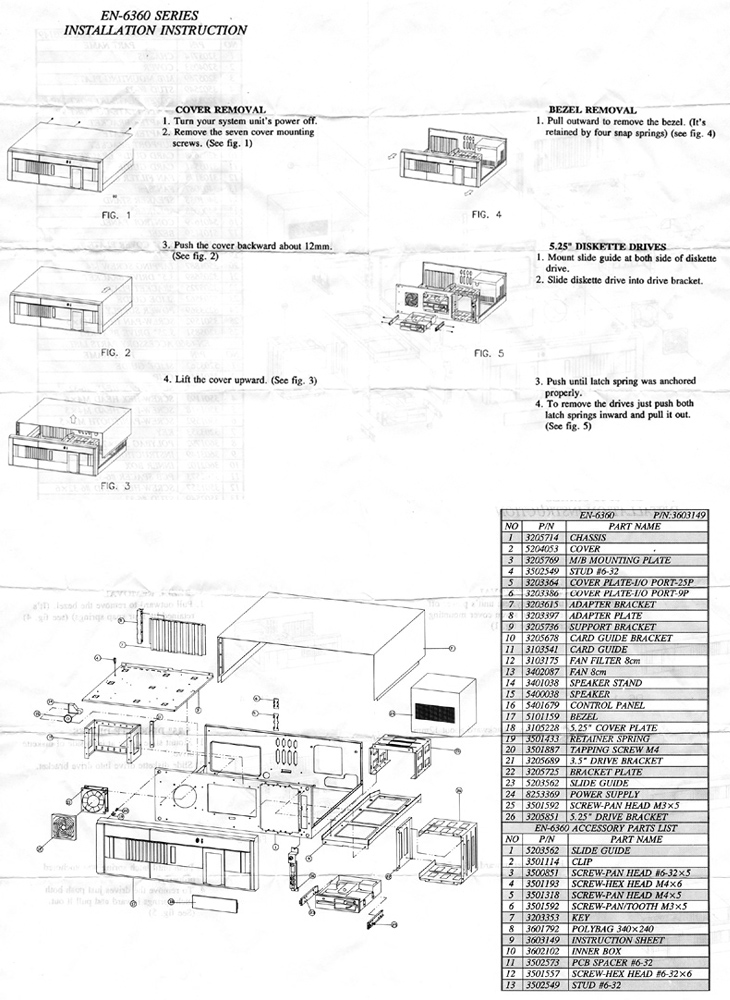

Description: This is the case information sheet that came with the Escom A4000T. It was originally a double-sided A3 sheet. The A4000T case is an Enlight 6360 but with a different bezel. This information sheet was included with a small package containing the unused drive rails for mounting additional devices in the drive bays.
Picture Stats:
Views: 1482
Filesize: 287.85kB
Height: 768 Width: 1024
Posted by: X-ray at December 04, 2006, 06:06:25 PM

Image Linking Codes
BB Code
0 Members and 1 Guest are viewing this picture.

Comments (2)

X-ray
Posts:4370
December 08, 2006, 11:00:12 AM
I just noticed: the information sheet says the bezel is retained by four snap springs (claw hooks). On the Amiga bezel, it is retained by six of these. You should ignore the bezel information on this sheet.

@ Lemonty

Hopefully somebody has the manual in PDF already. I am reluctant to scan mine because it is packed away at the bottom of a crate. However if you ask for the manual in a thread and nobody offers within a few weeks, I will see if I can scan mine.
Lemonty
Posts:193
December 07, 2006, 10:35:13 PM
Great work. Now, if someone could upload a pdf version of the 4KT manual somewhere ...
