| Minimig rev 1.0 | ||
 |
||
| Previous Image | Next Image | ||
|

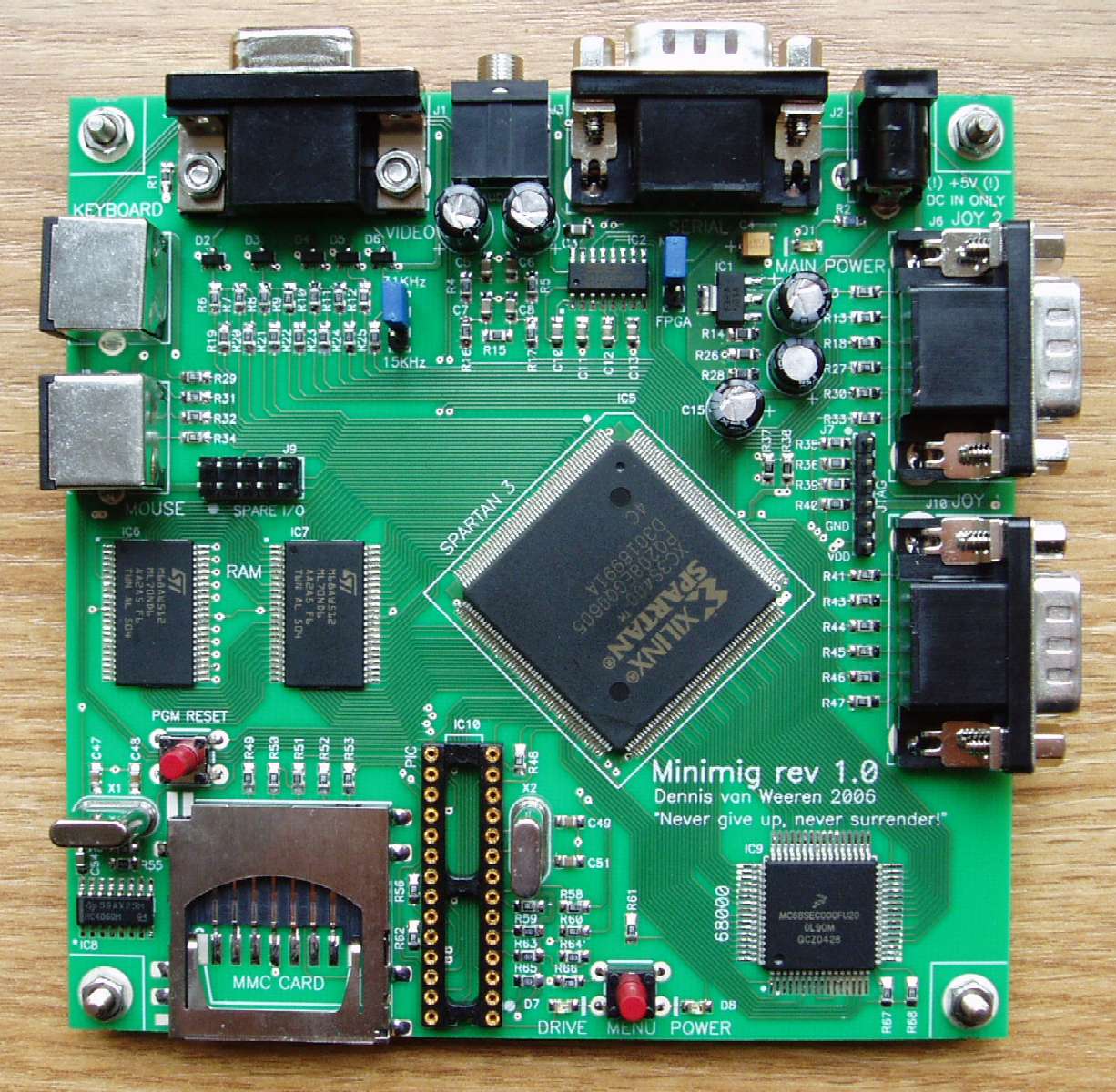

Description: Well, here it is; Minimig rev 1.0. My first stand-alone DIY Amiga :-D The specs are: Processor: 20Mhz MC68SEC000 RAM: 2Mbyte 70ns SRAM FPGA: 400Kgate Spartan-3 (XC3S400) Boot/system controller: PIC18LF252 Mass storage: MMC flash card Power: +5VDC (approx 100mA without mouse) I/O: dual PS/2 port (mouse/keyboard) dual 9-pin joystick port VGA port RS-232 port audio-out misc.: jtag interface, power/drive leds reset and OSD button And... it works!!!! :banana: :banana: :banana: :banana: :banana: :banana: :banana: :banana: Picture Stats: Views: 15323 Filesize: 229.19kB Height: 768 Width: 1024 Posted by: Dennis at November 15, 2006, 07:57:38 PM Image Linking Codes
|
||
