| Ugly but it worked | ||
 |
||
| Previous Image | Next Image | ||
|

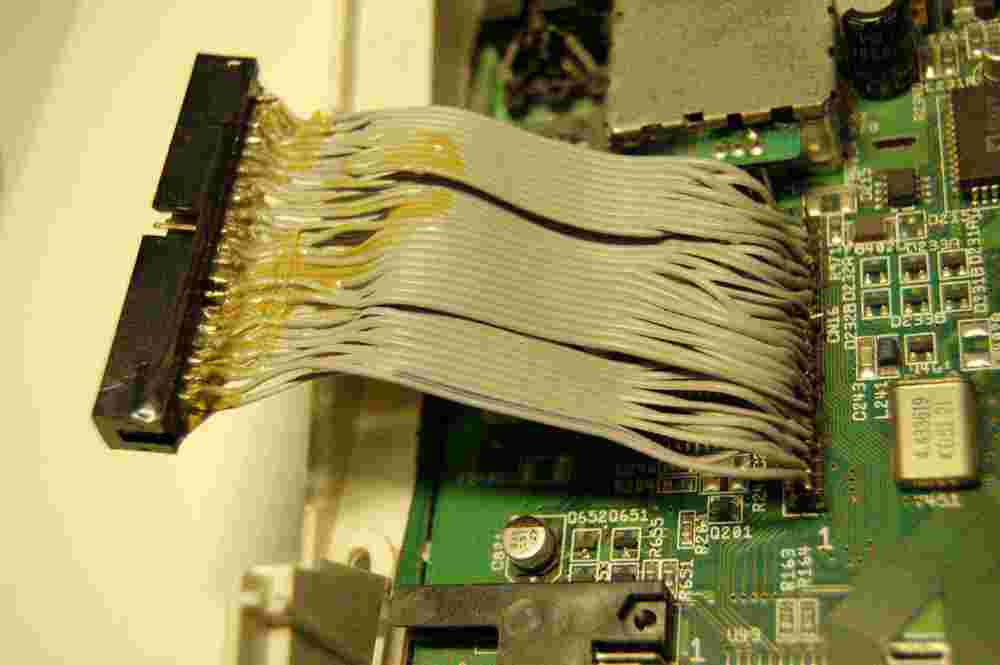

Description: I thought I would share this with you all, its a ribbon cable soldered to the HD conector pins on the MB of my second system. There is a female connector on the other end, it was used for connecting the HD and CD mounted and powered in a desk top case (see images). I will be removing this and fitting the correct connector, then routing it through a slot in the back of the case so that I can detach the HD & CD and use the Amiga as a "stock" A1200.
Picture Stats: Views: 1942 Filesize: 89.98kB Height: 768 Width: 1024 Posted by: dbrads at November 08, 2006, 03:28:07 AM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| rockape Posts:383 | July 19, 2011, 03:41:42 PM Hi Matthew aka AmigaKit Keep plugging mate. Without you we wouldn`t be here  Regards, Michael aka rockape Founder member of http://lincsamiga.org.uk/ aka LAG |
| odin Posts:6796 | January 21, 2008, 02:41:18 PM WTF. Soldered directly onto the IDE header, whoever did that deserves a lobotomy O_o. |
| koaftder Posts:2116 | October 06, 2007, 03:01:33 AM Sometimes ugly is perfectly acceptable and gets the job done. |
| justthatgood Posts:579 | March 08, 2007, 01:15:52 PM Ouch that looks rough. I don't think I've done a solder job that bad in a long, long time. |
| Gwion Posts:466
| January 13, 2007, 09:35:19 PM I'm 12yrs old and I treat my amiga better!!! |
| Cyberus Posts:5696
| November 11, 2006, 05:11:01 PM Jeez, is there NOTHING that you will not use as an opportunity to plug your shop?!?! |
| amigakit Posts:3668 | November 10, 2006, 10:18:43 PM Another way is to use this cheap cable: http://amigakit.leamancomputing.com/catalog/product_info.php?cPath=21_71&products_id=550 with our low-cost IDE buffered interface: http://amigakit.leamancomputing.com/catalog/product_info.php?cPath=21_71&products_id=532 |
| dbrads Posts:117 | November 09, 2006, 07:16:18 PM I agree, thats why I took it off! |
| DeQuevedo Posts:220
| November 09, 2006, 03:26:53 PM Poor Machine AMIGA deserves more care than this kind of acts |
