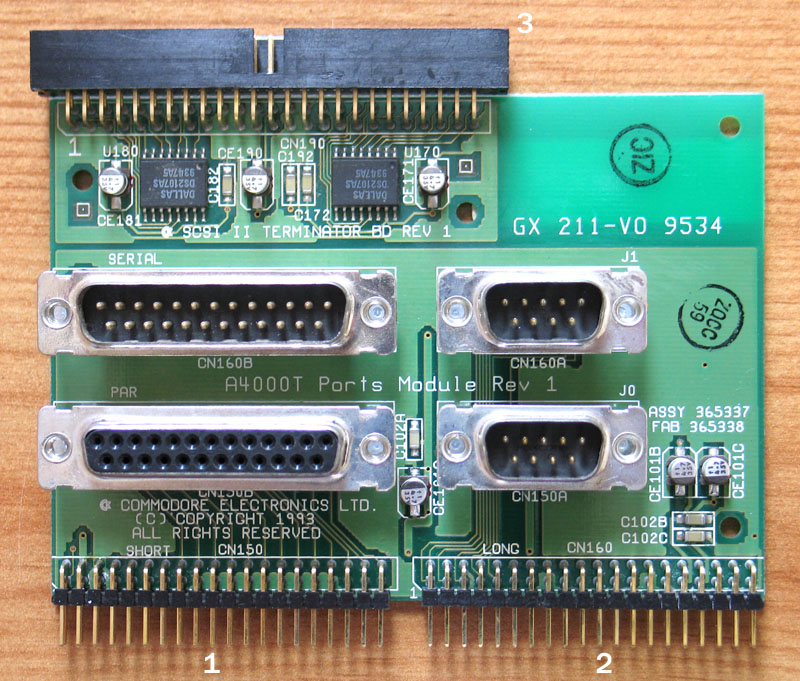

Description: This is the third of three 'daughter' modules that form part of the A4000T motherboard. This one connects to the mainboard via two 40-pin ribbon cables (at headers 1 and 2). The 'short' one is 22cm long and the 'long' one is 28cm long. You can probably use IDE cables if you don't have the original ribbon cables anymore. This module has the serial port, parallel port, joystick and mouse port. These are all accessed from the rear of the A4KT. There is also a SCSI-2 terminator (3) which is accessed internally. The ports module is attached to the rear of the A4KT case by means of the screws that attach to the brackets of the ports listed above.
