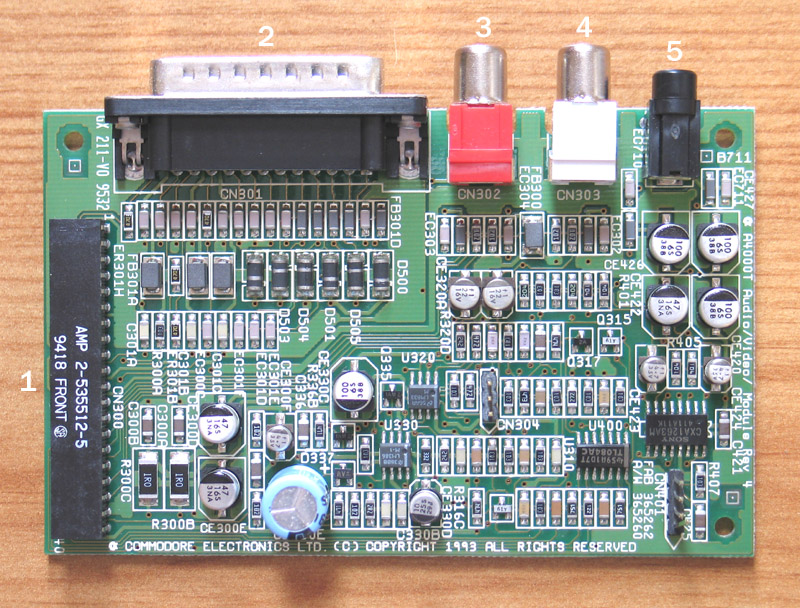

Description: This is the first of three 'daughter' modules that form part of the A4000T motherboard. This one attaches directly to the mainboard via a 40-pin header (1). There is a 23-pin RGB port (2), RCA audio outs (3 and 4) and a stereo headphone socket (5). All ports are accessed at the rear of the A4KT.
Picture Stats: Views: 2051 Filesize: 262.42kB Height: 768 Width: 1024 Posted by: X-ray at November 07, 2006, 06:31:47 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Jose Posts:2871
| April 09, 2008, 09:59:25 PM The picture is a bit too bright, but nevertheless there is absolutely no noise on the darker areas, what camera are you using ? |
| X-ray Posts:4370
| September 26, 2006, 04:15:36 PM No, I think that is CN304... |
| DrDekker Posts:325 | September 26, 2006, 01:02:49 PM Could it be for connecting up the audio out on a CDROM drive? :idea: |
| Matt_H Posts:6412 | July 09, 2006, 10:04:44 PM Any idea what the 4-pin CN401 header is for? Been trying to figure that out for years. My 4000T has pins 3-4 jumpered, but I have no idea what for. |
| CD32Freak Posts:646 | July 09, 2006, 08:44:10 PM I love the way how the A4000T was constructed with these modules. It was way ahead of its time :-) |
