| 25/23-Pin to 15-Pin VGA Adapter | ||
 |
||
| Previous Image | Next Image | ||
|

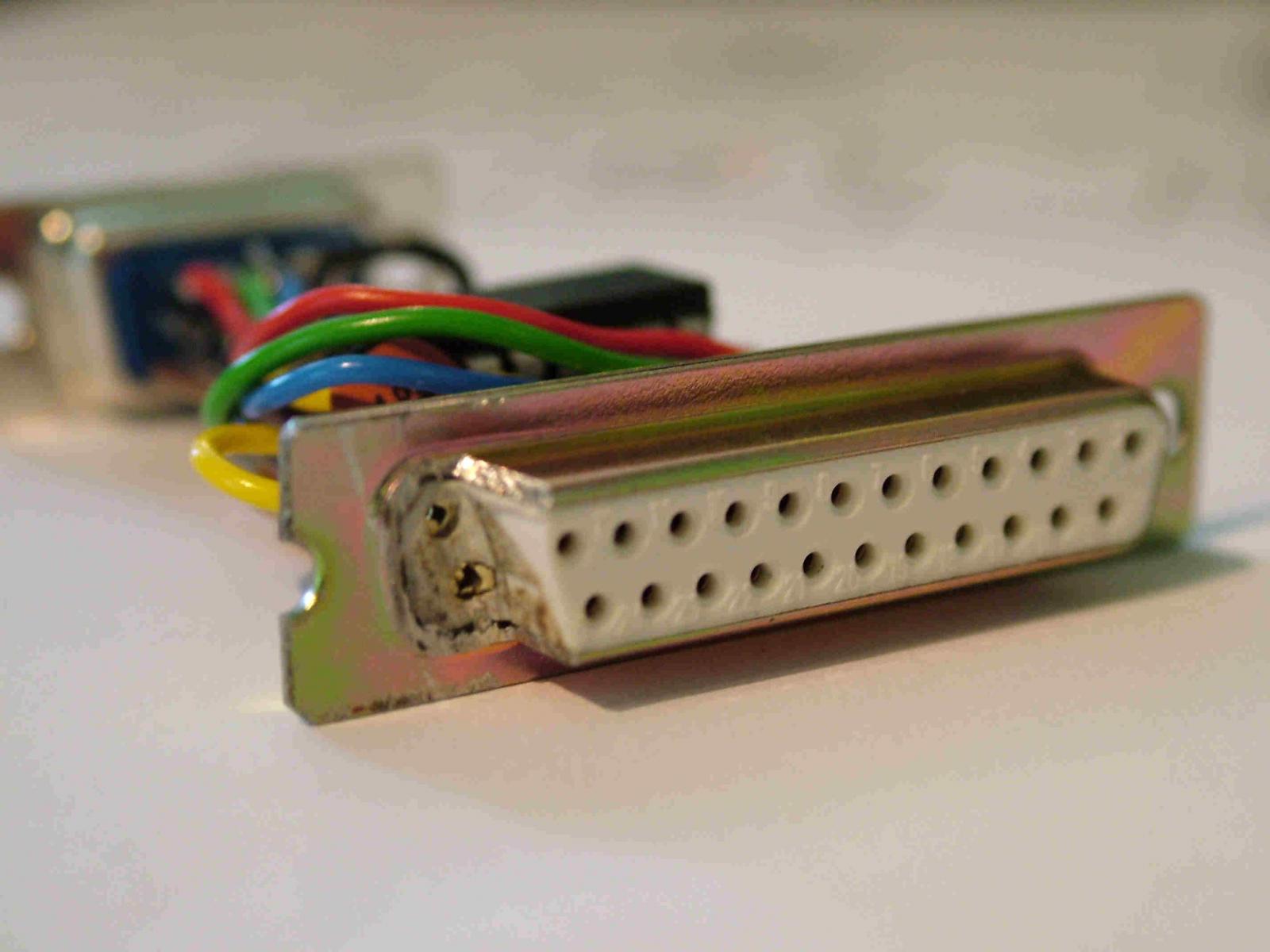

Description: As you can see from the photo - it's not a 23-pin D-Sub Socket at all! Due to the lack of 23-Pin jobbies, I've had to lop a couple of pins off a 25-Pin connector. :lol:
Picture Stats: Views: 2445 Filesize: 108.11kB Height: 768 Width: 1024 Posted by: DrDekker at October 04, 2006, 09:28:41 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| ognix Posts:256 | November 07, 2011, 04:29:45 PM Not for the "faint hearted"  but very clever and straight to the point!Nice job! |
| koaftder Posts:2116 | September 30, 2007, 09:50:47 PM Quote
Easier to do this with a pencil torch. |
| rkauer Posts:3263 | February 10, 2007, 07:15:58 PM If you are (un)lucky enough, take the external floppy connector from a REALLY dead A main board. Looks horrible to make it done, but here is how: -Disassemble all possibly parts away the MB; - put the MB over the kitchen's cook (solder side down!) for about 30~40 seconds; - with a plier, take the connector away the MB. - the very same process if you need an external floppy connector. :idea: |
| cv643d Posts:1197 | October 05, 2006, 07:14:12 PM I have a commercial genlock from the 80'ies that also has a cut 25 pin port to make it into a 23 pin port. Did not knew the 23 pin port was so rare. |
