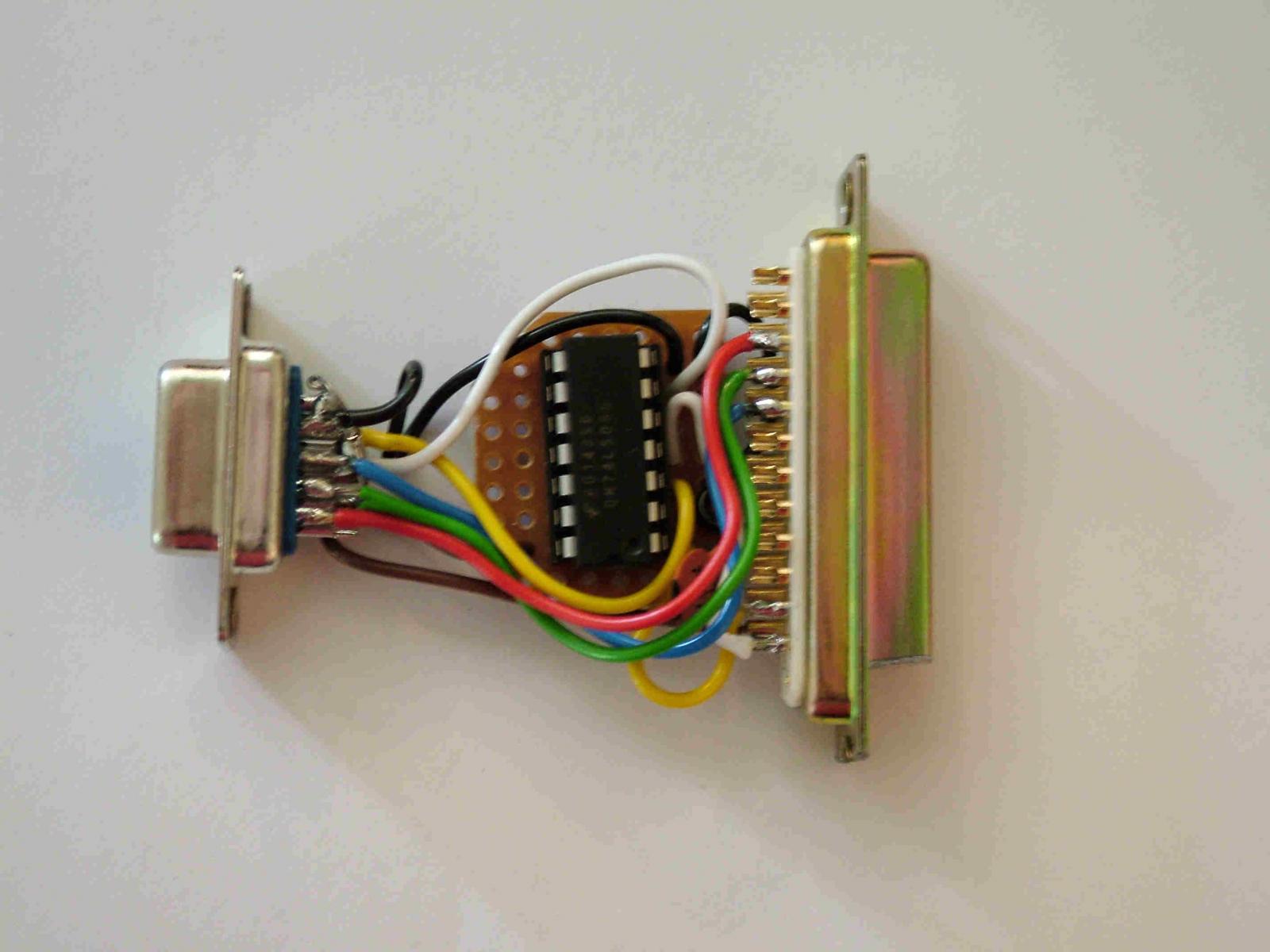

Description: Here's a top view of the 23-pin to 15-pin adapter I've just made. After a couple of unsuccessful attempts at getting it to work, I finally nailed the problem (bum Amiga hack) and got it working a treat with my A1200 and AG Neovo F419 TFT. Displays all non-interlaced modes from 24KHz upwards. :-)
