| Flicker Fixer "In a Cable" (close up) | ||
 |
||
| Previous Image | Next Image | ||
|

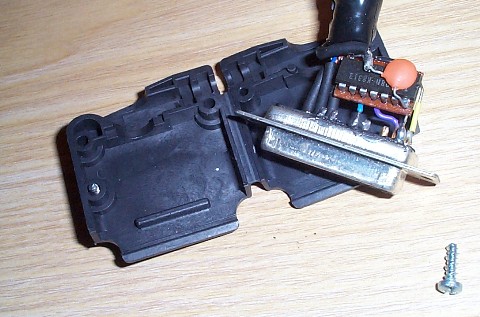

Description: This cable was to elimate the small adapter otherwise needed to fix the flicker.
Picture Stats: Views: 1852 Filesize: 52.76kB Height: 768 Width: 1024 Posted by: Ronmor at August 16, 2006, 10:36:14 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| snowman040 Posts:100 | August 17, 2006, 10:48:27 PM :-( I guess that scandoubling part can be done in single chip, but joining two halfpictures sounds tricky... thanks... |
| Ronmor Posts:83
| August 17, 2006, 10:41:45 PM snowman040, I'm sorry that I mislead you there are no flicker fixer on aminet, the circuit for it is quit complex. I was thinking about another project and typed the wrong title in. Ron |
| snowman040 Posts:100 | August 17, 2006, 06:59:06 PM Actually this is a "silver box" in cable ? Are there any scandoubler/flicker fixer projects outthere ? I didn't find any on aminet :-( |
| Ronmor Posts:83
| August 17, 2006, 01:12:53 PM your right lorddef it's not a flicker fixer but a signal inverter to use with the Toaster/flyer I got this cable project mixed up with the flicker fixer cable project. Ron |
| lorddef Posts:1146 | August 17, 2006, 12:50:51 PM Where is the flicker fixer? All I see is the simple logic to connect the 23pin port to a vga monitor that is used for modes like dblpal, no flicker fixer. |
| Ronmor Posts:83
| August 17, 2006, 12:26:06 PM Hi, I used two schematics,this a combinations Flicker Fixer and a 23 to 15 pin adapter. Each schematic had different grounds for the 15 pin end. So I only used the grounds that was common on both schematics. The schematics can be found on Aminet. Ron :-) |
| snowman040 Posts:100 | August 17, 2006, 11:06:14 AM What schematics you used ? |
