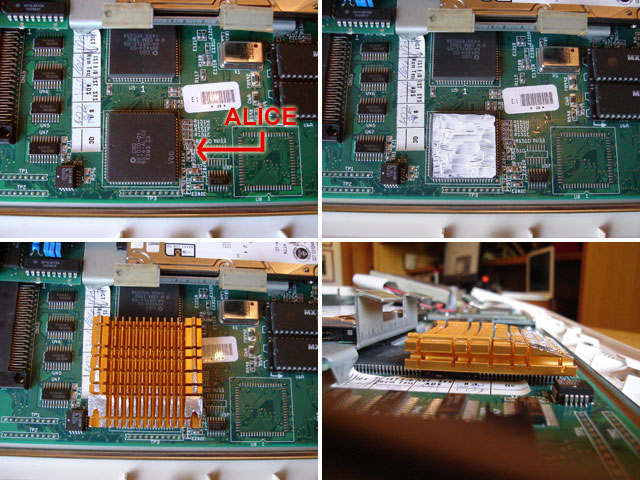

Description: The simpliest way to avoid the Alice overheating issue.
Picture Stats: Views: 2629 Filesize: 110.86kB Height: 768 Width: 1024 Posted by: starf81 at July 24, 2006, 01:38:00 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| rkauer Posts:3263 | January 21, 2008, 10:25:14 PM I use a kit of ready-made heatsinks taken from a PCI/AGP video cooler kit. Easily found on Ebay or other stores. |
| tokyoracer Posts:1590 | December 27, 2007, 06:43:39 PM What are them heatsinks called? Low profile? I want to get some on eBay if possible. :-? |
| Hodgkinson Posts:1080 | December 02, 2007, 07:31:30 PM Hello hello... Someone else with the same problem that I noticed...Id heard about these overheating issues and I thought Id do a few tests. An AGA demo (At 640x480x31Khz) didn't half cause Alice's temperature to skyrocket. I've made a custom aluminium heatsink that bridges across the three large custom chips as well as budgie just to the side, running straight under the RF shield and HDD caddy; I might post some photos one day when I find chance. EDIT: Photo now uploaded :-) Hodgkinson. |
| mikrucio Posts:375
| December 20, 2006, 12:26:26 AM yeah i did the exact same thing to my alice years ago. although it still overheated. i think it was because i was always running 640x480 31kz mode. |
| _yak_ Posts:227
| October 05, 2006, 06:57:51 PM I also had to cool it down when I started using the VGA monitor. Without it I was getting some artefacts on the display after a while. |
| starf81 Posts:332
| August 07, 2006, 06:59:09 PM Quite hot altough I didn't notice any issue led to Alice itself but I read many users comments about the high temperature problem, so I decided to apply this little "hack". |
| cv643d Posts:1197 | July 26, 2006, 08:28:06 PM How hot does it get without it? |
