| NatAmi CPU board prototype | ||
 |
||
| Previous Image | Next Image | ||
|

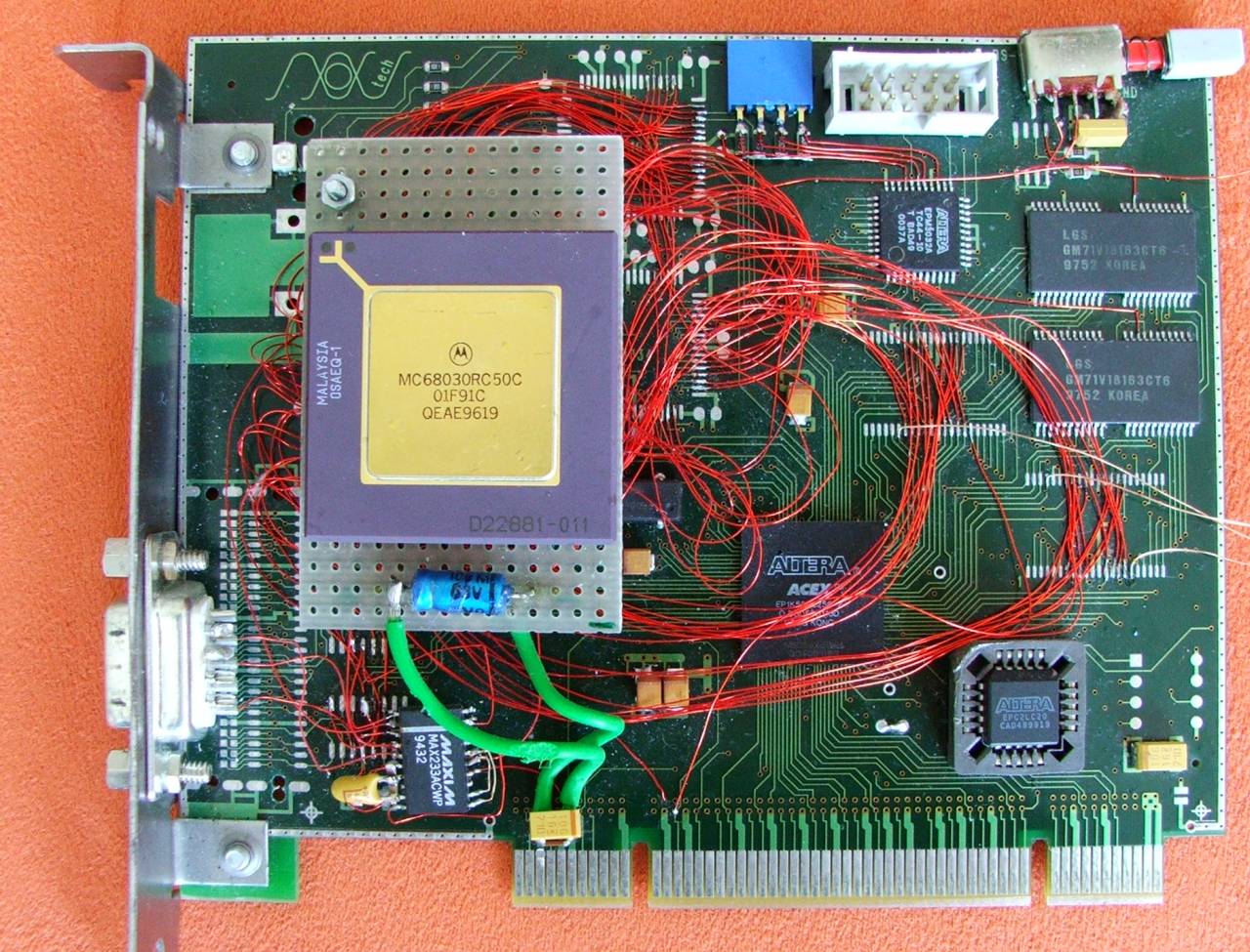

Description: It's a fully working 68030 CPU Board as a PCI card. It's running with PCI clock (33MHz). Has 4MB DRAM in the upper right corner organized as 512kB for Kickstart, 512kB fast.memory at 0x0c00000 and 2MB expansion.memory at 0x7e00000. And there is a debug serial port on the lower left see more at www.natami.net Picture Stats: Views: 4039 Filesize: 258.16kB Height: 768 Width: 1024 Posted by: bluea at June 25, 2006, 07:06:43 PM Image Linking Codes
|
||
