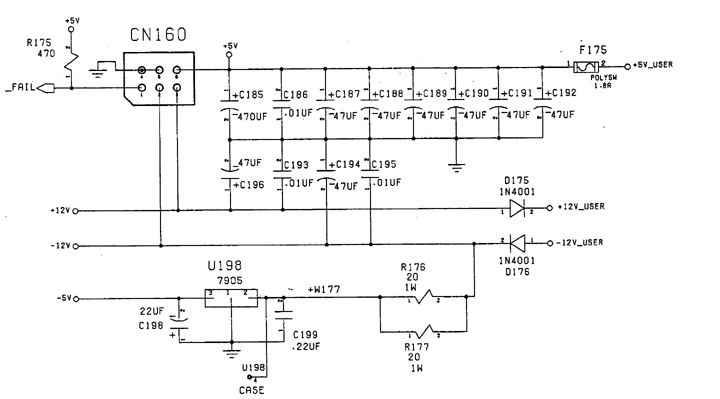

Description: This is a section of the Amiga 4000 MB schematic showing C194. Posted for user 'aseeley'. Schematic extracted from those provided by BBOAH. C194 is a bypass capacitor on the -12V line. It provides a low impedance path to ground for noise on the -12V supply.
Picture Stats: Views: 1616 Filesize: 66.3kB Height: 768 Width: 1024 Posted by: Oliver at May 14, 2006, 07:45:42 AM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Oli_hd Posts:912
| July 10, 2006, 11:02:16 AM If anyone has the original A4000T Service manual (or just the schematics) I would be very interested in them (£100 for the service manual?) The scans I found online are to low res to read the darn component values.  the BBOAH dont have the schematics any more.. |
