| A4000 capacitor leakage on audio area (at least it seems..) | ||
 |
||
| Previous Image | Next Image | ||
|

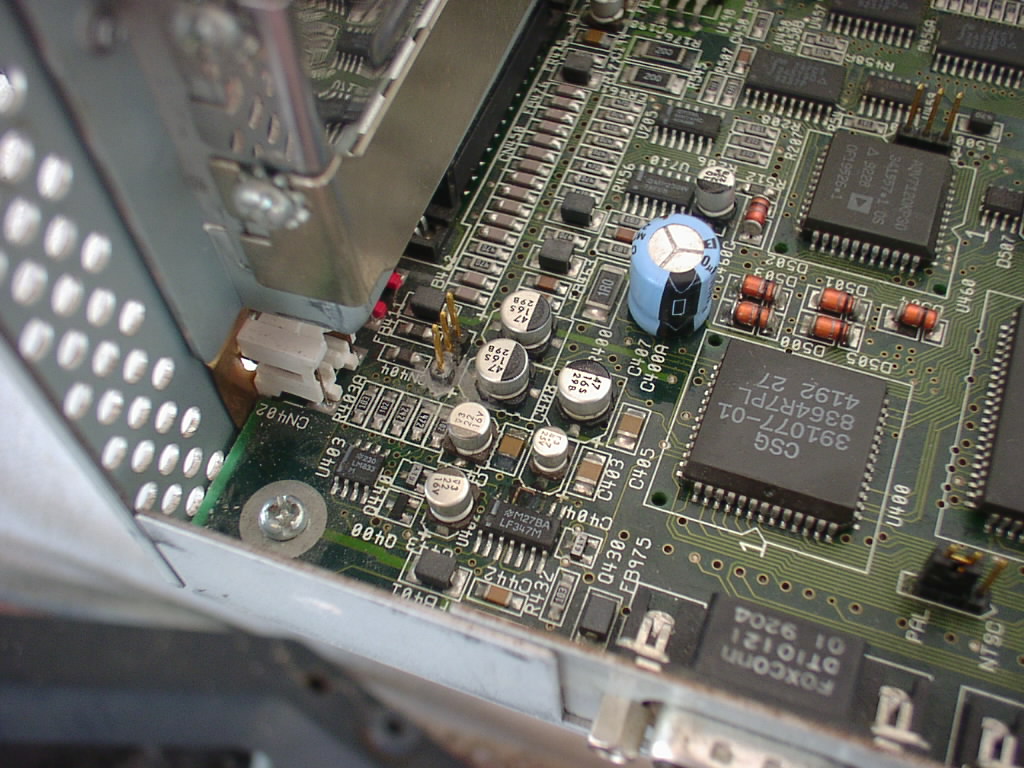

Description: Notice how the legs of the chip market M27BA LF347M are on the upper side. Also there's some white formation on the internal audio connector area.
Picture Stats: Views: 2104 Filesize: 217.92kB Height: 768 Width: 1024 Posted by: Jose at April 25, 2006, 06:16:36 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Argus Posts:942
| June 14, 2008, 01:22:22 PM Actually, I'm sort of glad I never changed out the Rev.9 Buster in one of my machines now that the DENEB card has come out....seems it might be more advantageous to have a Rev.9 now than a Rev.11 |
| rkauer Posts:3263 | January 18, 2008, 04:08:58 AM This is why I always ask ppl to swap those evil little {bleep}s each 3 years. BTW: those 2 22uF are the responsibles for the leakage. Swap those two for non-polarized units. |
| Jose Posts:2871
| July 29, 2006, 12:54:38 AM I've sent it to Castellen and he also resoldered a Buster rev.11 in there. Excellent :-D |
| Amigaz Posts:1959 | April 25, 2006, 10:16:06 PM hmmm...looks nasty How you gonna fix it? |
