| A4000D Tower project compleat | ||
 |
||
| Previous Image | Next Image | ||
|

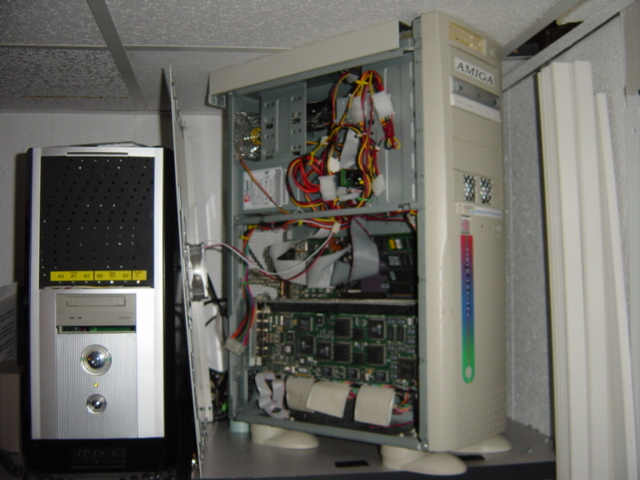

Description: This is my finished Amiga 4000 Desktop tower project. I started with the fulsized tower thjat used to be a P-3 800mHz machine. It was put into a smaller tower for my kids to use. I placed the A4000MB onto the backplate with metal spacers made for mounting the old P-3 and had to redrill all 9 holes and tap them. I then mounted the A4000mb to them along with the Video Toaster and Flyer cards and Cyberstorm. I placed the two SCSI system drives in the top section and Amiga flopy drive as well. I cut out a window in the side pannel and placed a fan and plexiglass sheet in it so I can view the Flyer idicator LEDs. I placed 4 80mm fans and 2 30mm fans inside the case to keep it cool. The 350watt ATX power supply is now running and the A4000D power supply is put aside for now. You can see the smaller tower beside it that I have all the Flyer drives in consisting of 2, 36gig Segate Cheetah drives 4, 9.1gig Quantum Atlus drives for video and 1 Barracudah 4.5gig drive for audio. Picture Stats: Views: 2728 Filesize: 144.17kB Height: 768 Width: 1024 Posted by: tonyvdb at February 20, 2006, 08:08:50 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| tonyvdb Posts:1121 | February 24, 2006, 07:23:21 PM Bigger :-o Thats hard to immagion and also to find as the one I have is just over 3ft. high :-D You will have to post pictures of that when your done. |
| justthatgood Posts:579 | February 24, 2006, 12:17:30 PM Mines still going to be bigger :-P |
| tonyvdb Posts:1121 | February 22, 2006, 03:21:05 AM :-D What are the chances of that, Verry cool 8-) |
| tomswift Posts:59
| February 21, 2006, 10:55:19 PM Wow that's the exact same tower I used for my A2000t hack. I put the whole bottom case inside. Lots of room. See link for my pictures on Aorg. http://www.amiga.org/gallery/index.php?n=644 http://www.amiga.org/gallery/index.php?n=646 |
| tonyvdb Posts:1121 | February 21, 2006, 05:27:43 PM Thanks, I thought that was funny as well when its on the floor you dont see the feet but now that i have it up high the feet make it look like it wants to walk away :laughing: |
| kd7ota Posts:1433 | February 21, 2006, 03:49:03 PM Nice! The tower itself also has feet! :-D :-) Seriously, good job overall. :-) |
