| Leaking caps near audio ports on A4000 m/b | ||
 |
||
| Previous Image | Next Image | ||
|

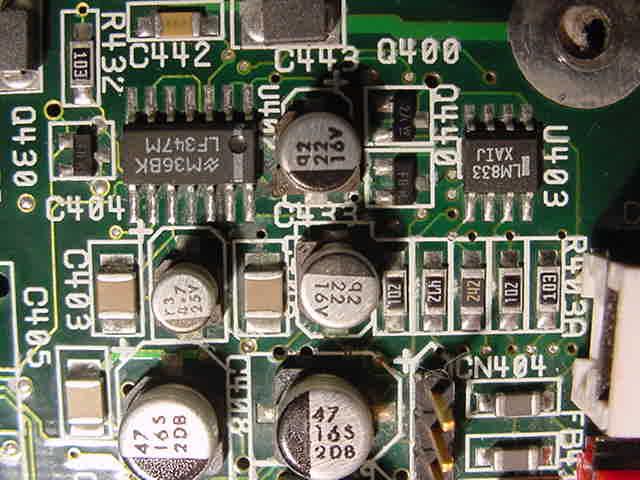

Description: Here you can see the damage caused by a leaking cap C443. If you look closely, you'll see there is corrosion of a trace and via to the left of C443 emanating from beneath U402. Other caps may have also leaked but the damage is less obvious.
Picture Stats: Views: 2404 Filesize: 58.08kB Height: 768 Width: 1024 Posted by: Argus at January 15, 2006, 03:10:14 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| da9000 Posts:922 | October 03, 2008, 03:50:52 AM That's right! They ALL are. Check your old skool Mac and NeXT boxes too! |
| Xanxi Posts:900 | June 05, 2006, 11:57:25 AM Even those are subject to leaking? Then all our computers are doomed to die!!! :-( |
