| A4000T - CN260 External Floppy Connector | ||
 |
||
| Previous Image | Next Image | ||
|

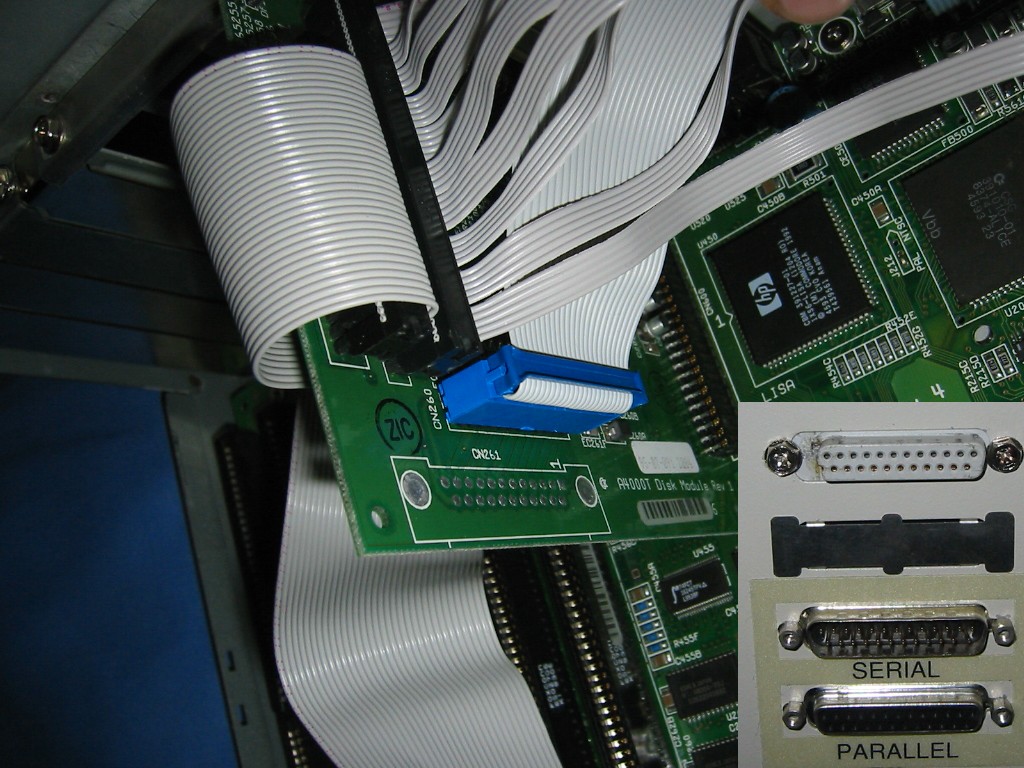

Description: Here's my 100% working A4000T external floppy connector. How-to: 1: Solder a 24-pin header on CN260 2:Get a piece of ribbon cable (23 wires), a 26-pin IDC ribbon cable connector and a 25-pin Dsub ribbon cable connector. Put these three together. 3: Hack away pins 13&25 on the Dsub, making it a 23-pin connector :-) (an all-plastic Dsub is recommended) -Paul Picture Stats: Views: 1851 Filesize: 207.95kB Height: 768 Width: 1024 Posted by: PaSha at January 03, 2006, 05:28:54 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| rkauer Posts:3263 | December 06, 2007, 10:01:12 PM Or pull an original 23 pin D-sub from a really dead Amiga board (better, because you can put the screw holders in it). And it have metal shield who help the connection stand in place. |
| Piru Posts:6946 | May 16, 2006, 12:45:52 AM @_yak_ Uh, because it's easier to mod 25->23 pin? |
| _yak_ Posts:227
| April 07, 2006, 06:03:25 PM Why is an all-plastic Dsub recommended? |
