| Minimig development board complete | ||
 |
||
| Previous Image | Next Image | ||
|

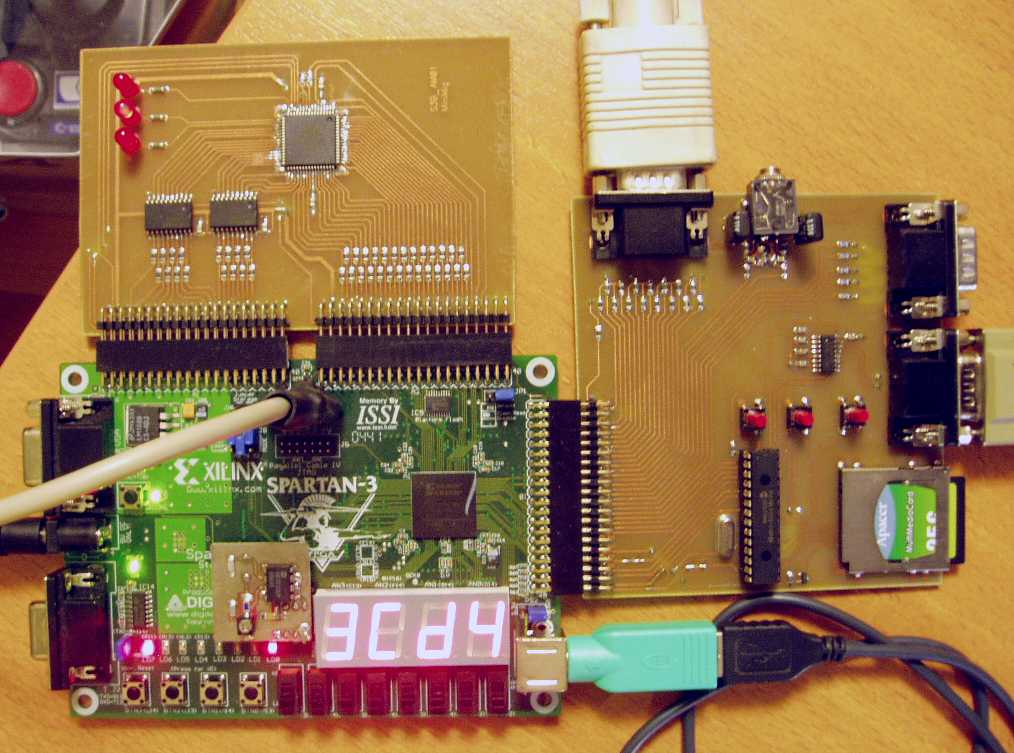

Description: This is my minimig development board. It is built around a Spartan-3 FPGA evaluation board. This board contains the FPGA, 1MByte SRAM, power regulators, PS/2 interface and lots of leds and swithches. To this i've added 3 boards of my own to get a complete sytem. On top you can see the processor board. Next to the LED displays is a small silvery board with the clock circuitry and to the left is a board with the MMC flashcard interface, joystick interface, videodac/connector and audiodac/connector.
Picture Stats: Views: 18428 Filesize: 87.85kB Height: 768 Width: 1024 Posted by: Dennis at December 05, 2005, 06:58:01 PM Image Linking Codes
|
||
