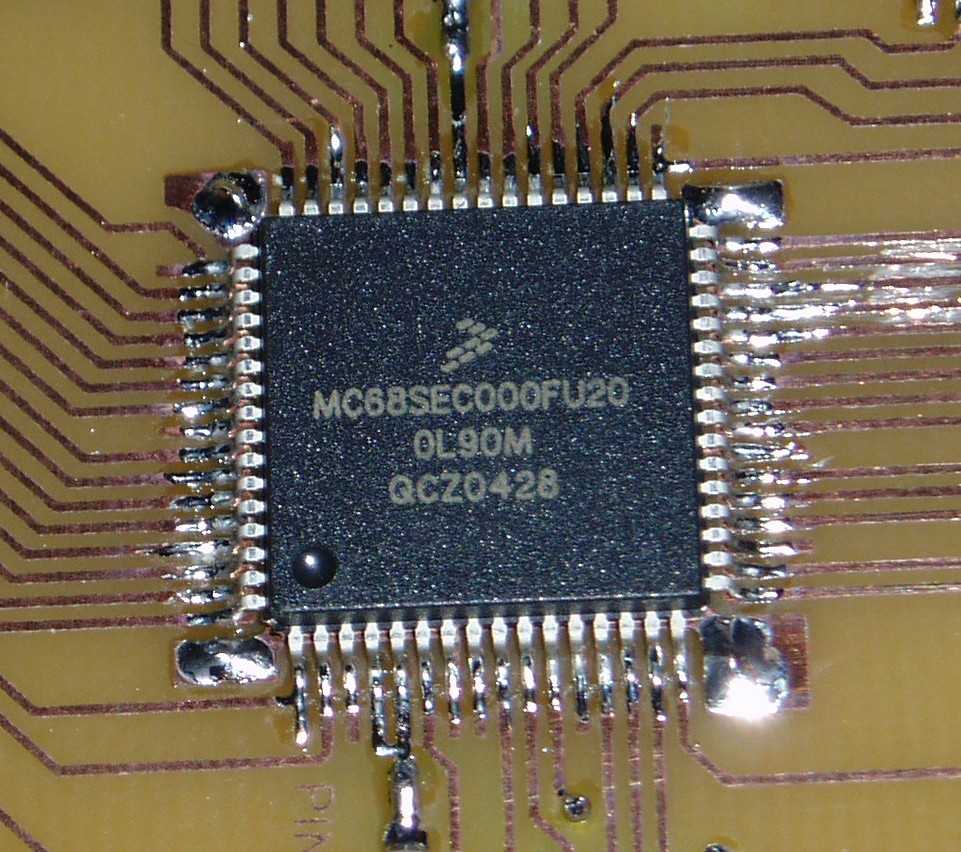

Description: This is the processor on my minimig development board. It is a embedded 3.3V version of the MC68000 that is much easier to interface to the Spartan-3 FPGA.
Picture Stats: Views: 12257 Filesize: 103.61kB Height: 768 Width: 1024 Posted by: Dennis at December 05, 2005, 06:39:51 PM Image Linking Codes
|
||
| 0 Members and 1 Guest are viewing this picture. |
| Homer Posts:1166 | September 05, 2007, 07:29:54 PM I remember when components were components, and you could solder em with a shovel :lol: Luxury !! |
| Speelgoedmannetje Posts:9656 | November 14, 2006, 02:48:32 PM Why didn't you use a socket :-? |
| Agafaster Posts:1175 | May 25, 2006, 04:57:56 PM looks like a 20MHz Beastie to boot ! how quick you running it ? |
| Karlos Posts:16879 | December 06, 2005, 04:09:55 PM Looks a lot dinkier than the DIL packages of old :-D |
